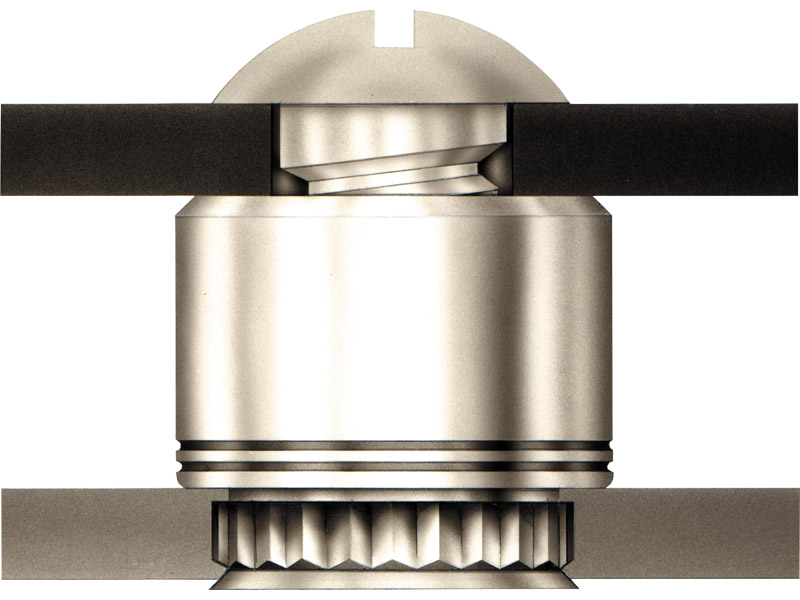

The KFB3-440-20ET from PennEngineering is a broach/flare-mount standoff designed for secure fastening in sheet metal applications. This standoff is constructed from brass and features a #4-40 thread size with a 2B ASME B1.1 specification.
Key mechanical specifications include a maximum shank diameter of 0.09 inches, a body diameter of 0.122 inches, and an overall length of 0.219 inches. The hex hole size required in the sheet is 0.166 inches, with a hex width of 0.179 inches. It is designed for sheet thicknesses ranging from 0.050 to 0.065 inches.
The standoff is suitable for use in sheet hardness up to HRB 65 / HB 116. The standard finish is annealed brass, ASTM B545, Class B with a clear preservative coating and electro-plated tin. The product category is Broach/Flare-Mount Standoffs – Type KFB3 – Unified Thread, utilizing broaching technology for mounting.
This component is RoHS3 compliant, has a Moisture Sensitivity Level (MSL) of 1, and is REACH unaffected. It is part of the KFB3 product family.
| Qty | Low | High |
|---|---|---|
| 1+ | $165.89 | $165.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is #4-40.
The standoff is made of brass.
The standoff is designed for sheet thicknesses from 0.050 to 0.065 inches.
The mounting type is Broach / Flare.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
