| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
163 pcs
|
163 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Tape & Reel | |
| Termination |

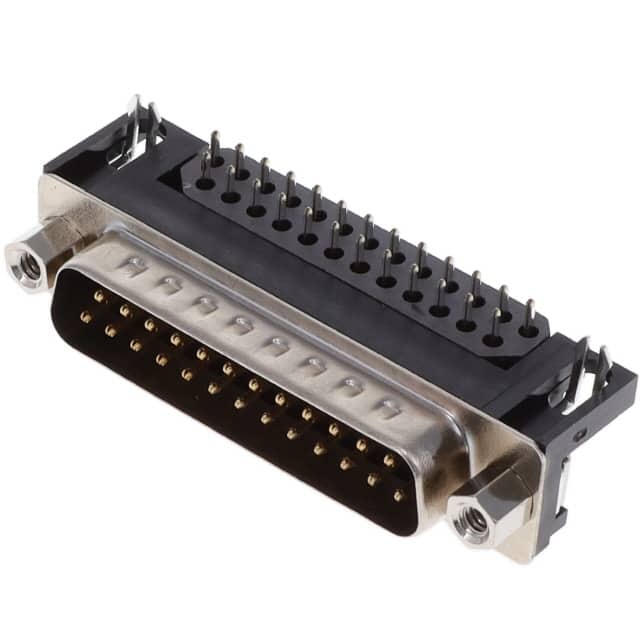

This D-Sub connector assembly from Kycon Inc., part number KF22X-B25P-NJ, is designed for 25 positions across two rows. It features a right-angle, through-hole mounting configuration, making it suitable for PCB applications where vertical space is limited.
The connector has a signal contact type with gold plating for enhanced conductivity and durability, rated for 2A current. The shell is constructed from steel with a nickel-plated finish, and includes features like board locks and grounding indents for secure mounting. The termination method is solder, ensuring a robust connection.
Material flammability is rated UL94 V-0, indicating a high level of safety. The flange includes a female screwlock for mating side security. This component is designated as RoHS3 Compliant, MSL 1, and REACH Unaffected, though these compliance statuses are unverified.
Key specifications include a 2A current rating, 25 positions, and a steel, nickel-plated shell. The mounting is through-hole and right-angled, with solder termination. The contact finish is gold with a flash thickness.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KF22X-B25P-NJ connector has 25 positions.
The mounting type is Through Hole, Right Angle.
The current rating is 2A.
The shell is Steel, Nickel Plated.
The material flammability rating is UL94 V-0.
