BC847B/215
Nexperia USA Inc.
The Nexperia USA Inc. BC847B/215 is a bipolar transistor. It is RoHS3 Compliant and has an MSL Level 1 rating.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
465 pcs
|
465 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| SVHC Present |

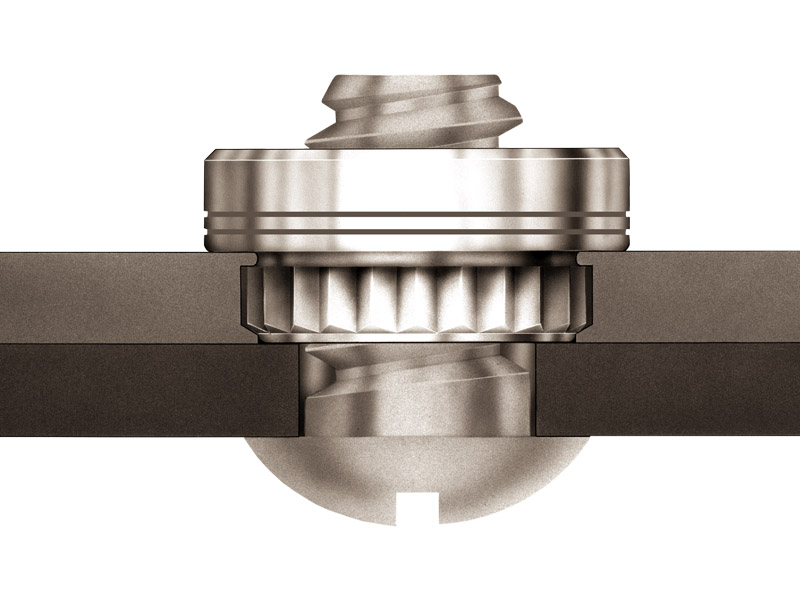

The PEM KF2-832-ET is a broaching nut from the KF2 product family, designed for reliable performance in demanding applications. This fastener utilizes a broaching technology for secure mounting.
Key specifications include a #8-32 thread size (2B, ASME B1.1) and a fastener material of lead-free carbon steel. The standard finish is annealed, ASTM B545, Class B with clear preservative coating and electro-plated tin. It is designed for use in sheet materials with a hardness of HRB 60 / HB 107 or less, including PC boards.
The broaching nut has a maximum shank of 0.06 inches and requires a hole size of 0.25 inches in the sheet. The minimum distance from the hole centerline to the edge is also 0.25 inches. Performance data indicates typical installation force of 700 lbs., pushout force of 95 lbs., and torque-out of 35 in. lbs. when tested on 0.060 inch FR-4 panel.
PEM, a PennEngineering brand, offers innovative fastening solutions for industries such as automotive, electronics, and data communications. The KF2-832-ET is part of their extensive portfolio of fasteners.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is #8-32.
It is made from lead-free carbon steel.
It is suitable for sheet hardness HRB 60 / HB 107 or less.
The required hole size in the sheet is 0.25 inches.
The typical installation force is 700 lbs.
The typical pushout force is 95 lbs.
The typical torque-out is 35 in. lbs.
