| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
129 pcs
|
129 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Product Type | |
| Thread Size |

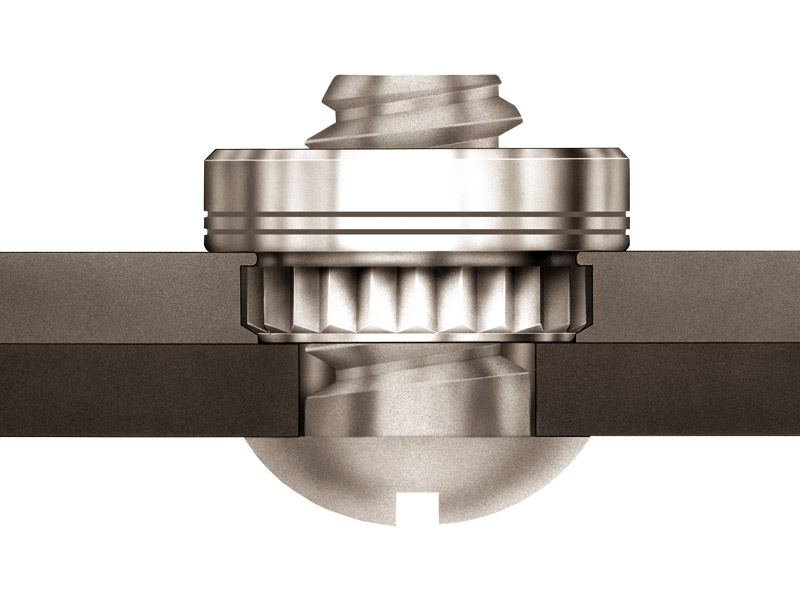

The KF2-440-ET from PennEngineering is a broaching nut, part of the KF2 product family. It is constructed from lead-free carbon steel with an annealed finish, ASTM B545, Class B, and a clear preservative coating, electro-plated tin. This nut is designed for installation in sheet material with a hardness of HRB 60 / HB 107 or less, including PC boards.
The broaching mounting type ensures secure fastening. Key dimensions include a shank max of 0.06 inches, a C dimension of 0.184 inches, and an E dimension of 0.219 inches. The required hole size in the sheet is 0.166 inches, with a minimum centerline to edge distance of 0.17 inches. The T dimension is 0.065 inches.
Performance data indicates a typical installation force of 400 lbs, a typical pushout force of 65 lbs, and a typical torque-out of 15 in. lbs. when installed in 0.060 inch FR-4 panel material. The thread specification conforms to 2B, ASME B1.1, with a thread code of 440 and a thread size of #4-40.
| Qty | Low | High |
|---|---|---|
| 1+ | $165.89 | $165.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KF2-440-ET broaching nut has a thread size of #4-40, with a thread code of 440 and a specification of 2B, ASME B1.1.
The KF2-440-ET broaching nut is made from lead-free carbon steel.
The standard finish is annealed, ASTM B545, Class B with clear preservative coating, and electro-plated tin.
The KF2-440-ET is designed for use in sheet material with a hardness of HRB 60 / HB 107 or less.
The required hole size in the sheet for the KF2-440-ET is 0.166 inches.
Typical installation performance in 0.060 inch FR-4 panel includes 400 lbs installation force, 65 lbs pushout, and 15 in. lbs. torque-out.
