| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Termination | |
| Voltage Rating |

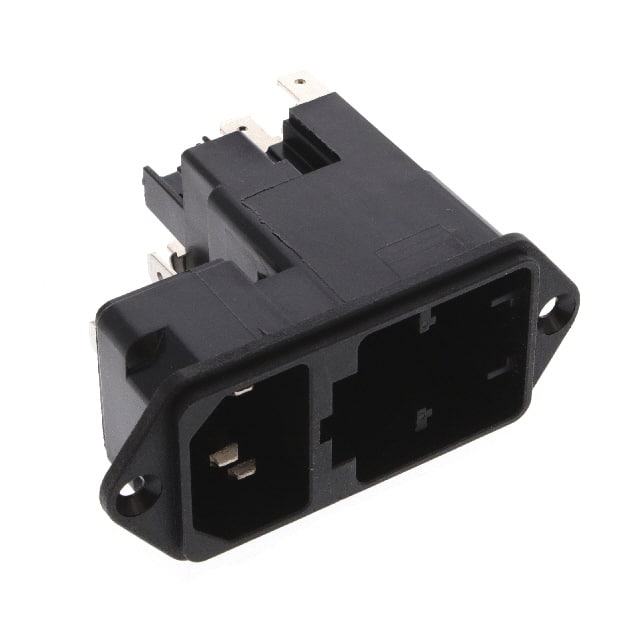

The Schurter KE16.5100.151 is a power entry module (PEM) designed for IEC 320-C14 appliance inlets. It features a male blade receptacle with 3 positions and a current rating of 10 A at 250 VAC. The module is unfiltered, making it suitable for commercial applications where EMI filtering is handled separately.
Key mechanical features include panel mount with flange, quick connect terminals (0.189" / 4.8 mm), and a rectangular panel cutout of 27.50 mm x 52.50 mm. The front side offers IP40 ingress protection. The module includes a voltage selector switch for dual voltage operation and accommodates a fuse holder for 5x20 mm or 6.3x32 mm fuse-links, though the fuse drawer is sold separately.
Environmental ratings include an operating temperature range of -25°C to 70°C and a flammability rating of UL94 V-0. Dielectric strength is verified at >3 kVAC between L-N and >4 kVAC between L/N-PE. The module is rated for protection class I according to IEC 61140 and carries approvals from cURus and ENEC.
This PEM is ideal for power supplies, industrial equipment, and appliances requiring a compact, reliable AC inlet with voltage selection and fuse accommodation. The quick connect terminals simplify wiring, and the panel mount design allows secure installation from front or rear.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.54 | $24.54 |
| 20+ | $19.86 | $19.86 |
| 40+ | $18.92 | $18.92 |
| 60+ | $18.38 | $18.38 |
| 100+ | $17.73 | $17.73 |
| 260+ | $16.58 | $16.58 |
| 500+ | $15.83 | $15.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A.
250 VAC.
Panel Mount, Flange.
3 positions.
IP40 on the front side.
Yes, but the fuse drawer is sold separately.
cURus and ENEC.
