| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ 1 min/50 Hz) | |
| Features | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuseholder Category | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Power Acceptance (Nominal @ 5 x 20 mm fuse, 1 pole, Ta=23 °C) | |
| Power Acceptance (Nominal @ 5 x 20 mm fuse, 2 pole, Ta=23 °C) | |
| Power Acceptance (Nominal @ 6.3 x 32 mm fuse, 1 pole, Ta=23 °C) | |
| Power Acceptance (Nominal @ 6.3 x 32 mm fuse, 2 pole, Ta=23 °C) | |
| Protection Class | |
| Terminal Dimensions | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Selector Configuration |

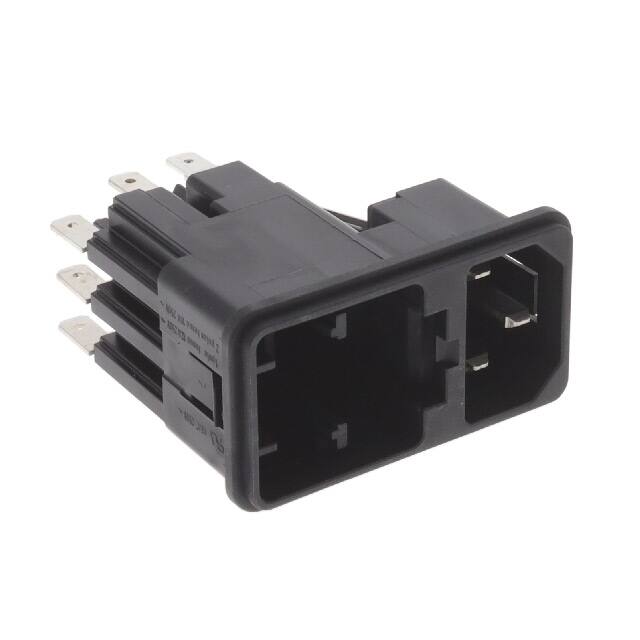

This Schurter KE10.6100.107 power entry module (PEM) combines an IEC 320-C14 appliance inlet, a fuseholder for 1- or 2-pole fuses, and a voltage selector. It is designed for protection class I equipment and meets IEC/UL 62368-1 requirements.
Electrical ratings: 10A at 250VAC, 50/60 Hz. Dielectric strength exceeds 3 kVAC between L-N and 4 kVAC between L/N-PE. Operating temperature range is -25°C to 70°C. The front side offers IP40 ingress protection.
Mechanical features: panel mount snap-in with a rectangular cutout of 27.50mm x 52.50mm and panel thickness of 2.00mm. Quick connect terminals are 4.8 x 0.8 mm. The housing is rated UL94 V-0. The fuse drawer is sold separately and accommodates 5x20mm or 6.3x32mm fuses. The voltage selector provides series-parallel configuration with 4/3/2 positions.
The module is unfiltered (commercial grade). Power acceptance depends on fuse size and number of poles: up to 2.5W per pole for 5x20mm fuses, or 3.15W for 6.3x32mm fuses. Suitable for use in power supplies, industrial controls, and medical equipment where voltage selection and fuse protection are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.75 | $25.75 |
| 20+ | $20.84 | $20.84 |
| 40+ | $19.84 | $19.84 |
| 60+ | $19.29 | $19.29 |
| 100+ | $18.60 | $18.60 |
| 260+ | $17.39 | $17.39 |
| 500+ | $16.61 | $16.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A at 250 VAC.
250 VAC.
Panel mount, snap-in.
-25°C to 70°C.
No, the fuse is not included. The fuse drawer is sold separately.
IP40 on the front side.
UL94 V-0.
