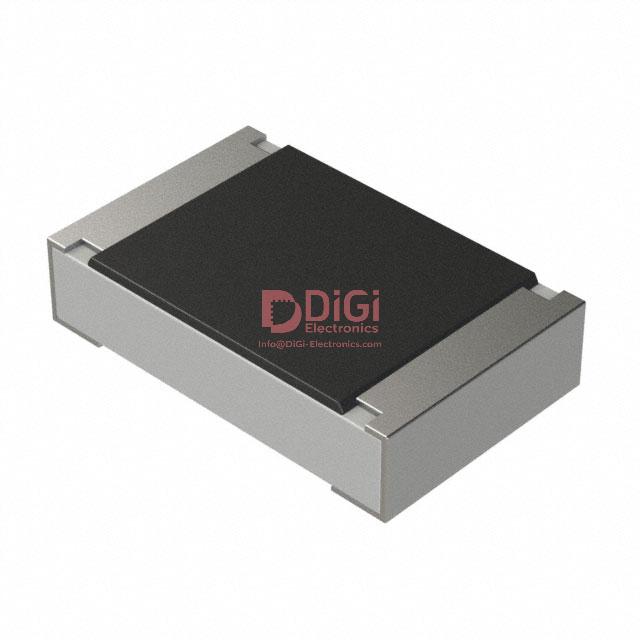

KDV08DR200ET The Ohmite KDV08DR200ET is a surface mount chip resistor. It features a resistance of 200 mΩ with a tolerance of ±0.5% and a power rating of 0.25W.
Mfr Part #:

KDV08DR200ET

Available from 1 distributors
Mfr Name: Ohmite
Ohmite
The Ohmite KDV08DR200ET is a surface mount chip resistor. It features a resistance of 200 mΩ with a tolerance of ±0.5% and a power rating of 0.25W.
✓ Total Stock: 5 pcs
$ Price Range: $0.05

KDV08DR200ET Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Spartce Electronics. ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KDV08DR200ET Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

KDV08DR200ET Description

Short technical summary and product information.

This Ohmite KDV08DR200ET is a surface mount chip resistor designed for various electronic applications. It offers a resistance value of 200 mΩ with a tight tolerance of ±0.5%, ensuring precise circuit performance.



The resistor has a power rating of 0.25W (1/4W) and is constructed with a metal film composition. It operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±50ppm/°C.



The component comes in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.65mm. It features two terminations and is suitable for current sensing applications.



This part is supplied in Cut Tape (CT) & Digi-Reel® packaging, making it convenient for automated assembly processes.

KDV08DR200ET Quick Information

Product Type: Chip Resistor - Surface Mount
Series: KDV
Canonical Name: Ohmite KDV08DR200ET Chip Resistor - Surface Mount 200 mΩ ±0.5% 0.25W Metal Film
Subcategory: Surface Mount

KDV08DR200ET Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KDV08DR200ET Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

KDV08DR200ET Features

  • Surface mount chip resistor with 200 mΩ resistance.
  • Features ±0.5% tolerance for precise performance.
  • Rated for 0.25W power with metal film construction.
  • Operates from -55°C to 155°C with low temp coefficient.
  • 0805 package suitable for automated assembly.

KDV08DR200ET Applications

  • Ideal for current sensing applications.
  • Suitable for general purpose circuit design.
  • Used in compact electronic devices.
  • Applicable in temperature-sensitive circuits.

KDV08DR200ET FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the Ohmite KDV08DR200ET?

The resistance value is 200 mΩ.

What is the tolerance of the KDV08DR200ET resistor?

The tolerance is ±0.5%.

What is the power rating for the Ohmite KDV08DR200ET?

The power rating is 0.25W, or 1/4W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the Ohmite KDV08DR200ET available in?

It is available in the 0805 (2012 Metric) package size.

What are the dimensions of the 0805 package?

The dimensions are 2.00mm in length and 1.25mm in width.
