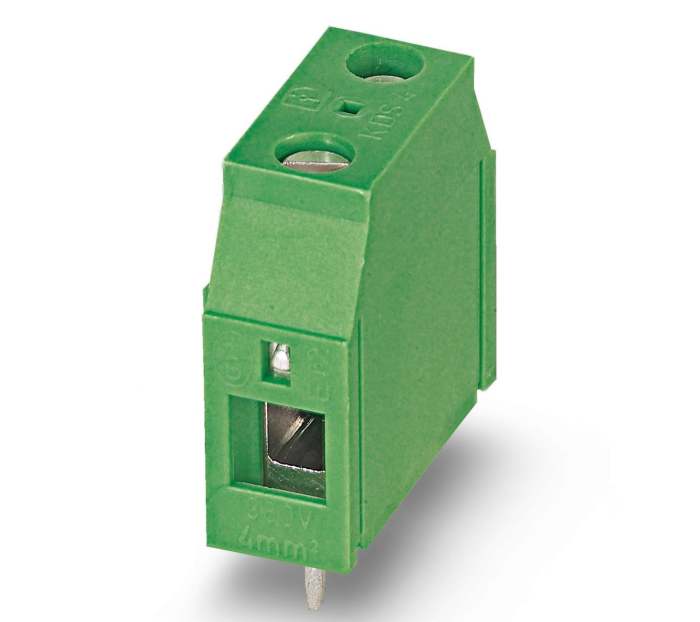

KDS4 The Phoenix Contact KDS4 Series PCB Terminal Block features a 7.5mm pitch and screw termination. It offers a 1-contact configuration with a 41A current rating and 320V voltage rating.
Mfr Part #:

KDS4

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact KDS4 Series PCB Terminal Block features a 7.5mm pitch and screw termination. It offers a 1-contact configuration with a 41A current rating and 320V voltage rating.
✓ Total Stock: 124 pcs
$ Price Range: $1.00

KDS4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
84 pcs
On Request
84 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KDS4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Country of Origin
Current Rating
Failure Rate
Housing Material
Length
Mounting Type
Number of Contacts
Number of Rows
Orientation
Pitch
Termination Style
Voltage Rating
Width
View Similar Products (0)

KDS4 Description

Short technical summary and product information.

This Phoenix Contact KDS4 Series PCB Terminal Block is designed for reliable electrical connections. It features a 7.5mm pitch and a single contact, suitable for various PCB applications.



The terminal block has a robust polyamide housing and screw termination for secure wire connections. It is rated for a current of 41A and a voltage of 320V, making it suitable for moderate power applications. The 0° orientation and PCB mounting type ensure straightforward integration into circuit designs.



Additional features include a test connector for 2 mm to 2.2 mm test plugs and wire acceptance for up to 6 mm² solid or 4 mm² standard wire. The KDS4 series is known for its modular design and strong mechanical anchoring, offering low temperature rise due to maximum contact force. It originates from Poland.

KDS4 Quick Information

Product Type: PCB Terminal Block
Series: KDS4
Canonical Name: Phoenix Contact KDS4 Series PCB Terminal Block
Subcategory: PCB Terminal Block

KDS4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

KDS4 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

KDS4 Features

  • Single contact PCB terminal block.
  • 7.5mm pitch for compact designs.
  • Rated for 41A and 320V operation.
  • Secure screw termination method.
  • Polyamide housing for durability.

KDS4 Applications

  • Suitable for PCB power connections.
  • Used in moderate current applications.
  • Facilitates secure wire termination.
  • Designed for reliable signal integrity.

KDS4 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the KDS4 have?

1 position.

What is the pitch of the KDS4?

7.5 mm.

What is the current rating?

41 A.

What is the voltage rating?

320 V.

What is the mounting type?

PCB Mount.

What wire sizes does the KDS4 accept?

Solid wire up to 6 mm² and standard wire up to 4 mm².

What test plug size fits the KDS4?

2 mm to 2.2 mm test plugs.
