| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Termination | |
| Voltage |

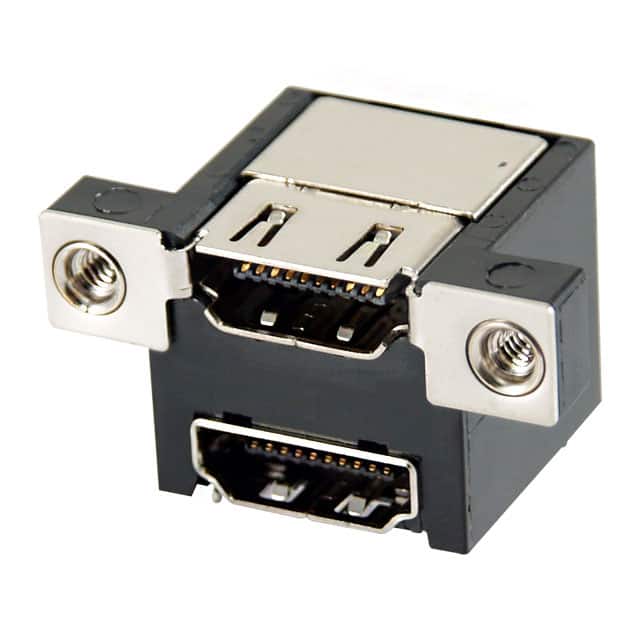

The Kycon KDMI42X-FS2-WS-B15 is a dual stacked HDMI receptacle connector designed for high-density multimedia interface applications. It features 38 contacts across 2 ports, providing a compact solution for HDMI connectivity. The connector is shielded for EMI protection and includes a board guide for easy alignment during assembly. It has a current rating of 0.5A per contact and a voltage rating of 40VAC, suitable for standard HDMI signal transmission. The operating temperature range is -25°C to 85°C, allowing use in various environments. The mounting style is panel mount, through hole, right angle with a horizontal flange, ensuring secure attachment to the PCB or panel. Termination is via solder, providing reliable electrical connections. The connector is RoHS compliant and REACH unaffected, meeting environmental requirements. It is ideal for use in consumer electronics, automotive infotainment, and industrial displays where space-saving dual port HDMI connectivity is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.21 | $8.21 |
| 10+ | $6.98 | $6.98 |
| 40+ | $6.33 | $6.33 |
| 80+ | $6.02 | $6.02 |
| 120+ | $5.85 | $5.85 |
| 280+ | $5.51 | $5.51 |
| 520+ | $5.28 | $5.28 |
| 1,000+ | $5.04 | $5.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
38 contacts.
2 ports.
0.5A per contact.
40VAC.
Panel Mount, Through Hole, Right Angle.
Yes, it is shielded.
-25°C to 85°C.
