| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ 1 min/50 Hz) | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuseholder Type | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Maximum Operating Temperature | |
| Medical Grade | |
| Minimum Operating Temperature | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness (Maximum @ Screw mounting) | |
| Panel Thickness (Nominal @ Snap-in mounting) | |
| Rated Power Acceptance (Nominal @ 5 x 20 mm fuse, 1-pole, Ta=23 °C) | |
| Rated Power Acceptance (Nominal @ 5 x 20 mm fuse, 2-pole, Ta=23 °C) | |
| Rated Power Acceptance (Nominal @ 6.3 x 32 mm fuse, 1-pole, Ta=23 °C) | |
| Rated Power Acceptance (Nominal @ 6.3 x 32 mm fuse, 2-pole, Ta=23 °C) | |
| Switch Features | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Selector |

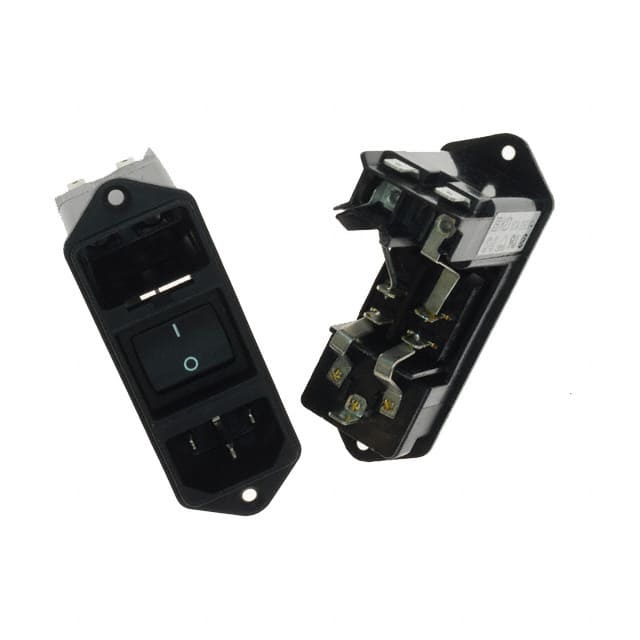

The Schurter KD14.1101.151 is a panel mount IEC 320-C14 appliance inlet from the KD14 series, combining a receptacle, 2-pole line switch, and fuseholder for 5x20mm or 6.3x32mm fuse links. It is rated for 10A at 250VAC (IEC/UL) and features a dielectric strength of >3 kVAC between L-N and >4 kVAC between L/N-PE.
Mechanical specifications include panel mount with flange (screw or snap-in), quick connect terminals (4.8x0.8mm), and a panel cutout of 27.50mm x 66.50mm. Panel thickness supports up to 8mm for screw mounting and 1.5/2/2.5mm for snap-in. The housing is black thermoplastic with UL94 V-0 flammability rating and IP40 front side protection.
Approvals include CCC, CSA, ENEC, and UL. It operates from -25°C to 70°C and is suitable for protection class I equipment. The fuse drawer is sold separately; the module itself is unfiltered and intended for commercial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $31.16 | $31.16 |
| 20+ | $25.22 | $25.22 |
| 40+ | $24.02 | $24.02 |
| 60+ | $23.34 | $23.34 |
| 100+ | $22.52 | $22.52 |
| 260+ | $21.05 | $21.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A.
250 VAC.
Panel mount with flange; screw or snap-in mounting. Screw mounting supports up to 8 mm panel thickness; snap-in supports 1.5 mm, 2 mm, or 2.5 mm.
It accepts 5x20 mm and 6.3x32 mm fuse links.
-25 °C to 70 °C.
Yes, it is RoHS3 compliant (unverified).
CCC, CSA, ENEC, and UL.
