| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,767 pcs
|
1767 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

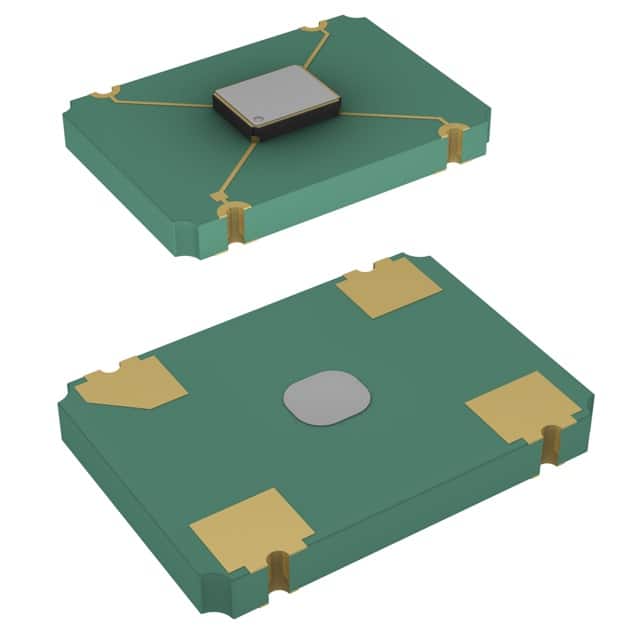

The KC7050K22.5792C1GE00 is a surface-mount XO (Standard) oscillator from Kyocera AVX, featuring a crystal base resonator. It operates at a nominal frequency of 22.5792 MHz with a frequency stability of ±50ppm. The output logic is CMOS, and the device includes a standby (power down) function for power-sensitive applications.
The oscillator accepts a wide supply voltage range of 1.6V to 3.63V, with a typical supply current of 3.5mA. It is designed for an operating temperature range of -40°C to 85°C, making it suitable for industrial environments.
The component is housed in a 4-SMD, No Lead package measuring 7.00mm x 5.00mm with a maximum height of 1.20mm, and is intended for surface mount assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.38 | $1.38 |
| 10+ | $1.20 | $1.20 |
| 25+ | $1.14 | $1.14 |
| 50+ | $1.09 | $1.09 |
| 100+ | $1.04 | $1.04 |
| 250+ | $0.99 | $0.99 |
| 500+ | $0.95 | $0.95 |
| 1,000+ | $0.91 | $0.91 |
| 2,000+ | $0.87 | $0.87 |
| 3,000+ | $0.85 | $0.85 |
| 5,000+ | $0.82 | $0.82 |
| 7,000+ | $0.81 | $0.81 |
| 10,000+ | $0.79 | $0.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22.5792 MHz.
±50ppm.
CMOS.
1.6V to 3.63V.
-40°C to 85°C.
4-SMD, No Lead, 7.00mm x 5.00mm, 1.20mm height.
Yes, standby (power down) function.
