| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Disable Time | |
| Enable Time | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| High Level Input Voltage | |
| High-Level Output Voltage | |
| Input Voltage Range | |
| Jitter (1 Sigma) | |
| Jitter (Peak-to-Peak) | |
| Length | |
| Low Level Input Voltage | |
| Low-Level Output Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Load | |
| Rise & Fall Time | |
| SVHC Present | |
| Standard Package Quantity | |
| Start-up Time | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supply Current (Maximum @ VCC=3.63 V~5.5 V, fo=20 MHz~40 MHz) | |
| Symmetry | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

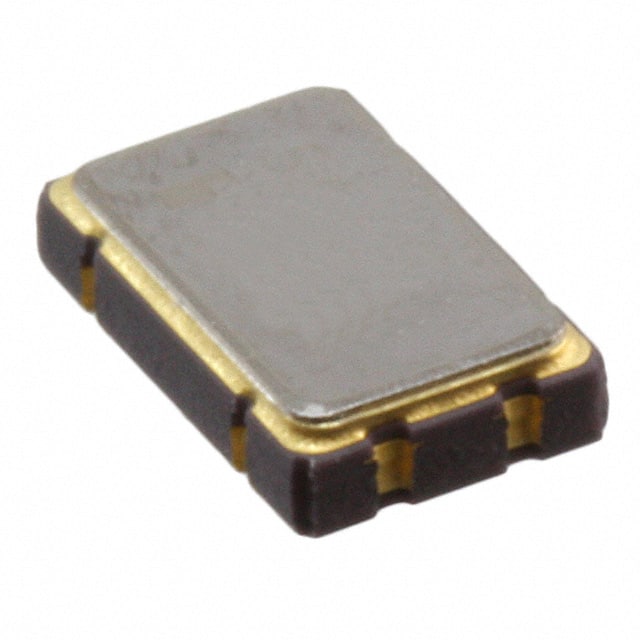

The Kyocera AVX KC5032A30.0000CM0E00 is a 30MHz CMOS XO (standard) oscillator from the KC5032A-CM series. It operates over a wide supply voltage range of 1.6V to 5.5V, making it suitable for various low-power and standard logic applications. The oscillator provides a CMOS output with 15pF load capability and features a standby power-down function for energy savings.
Frequency stability is ±50ppm over the operating temperature range of -10°C to +70°C. The device offers fast start-up time of 10ms maximum and typical rise/fall times of 6ns under 2.8V to 3.63V supply. Jitter performance is specified with 1 sigma jitter of 8ps and peak-to-peak jitter of 80ps.
The oscillator is housed in a compact 5.0x3.2mm 4-SMD no-lead ceramic package with a height of 1.20mm, ideal for space-constrained surface mount designs. It is supplied in tape and reel packaging with 1000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 MHz.
1.6V to 5.5V.
CMOS.
±50ppm.
-10°C to 70°C.
4-SMD, No Lead surface mount package.
RoHS3 Compliant.
