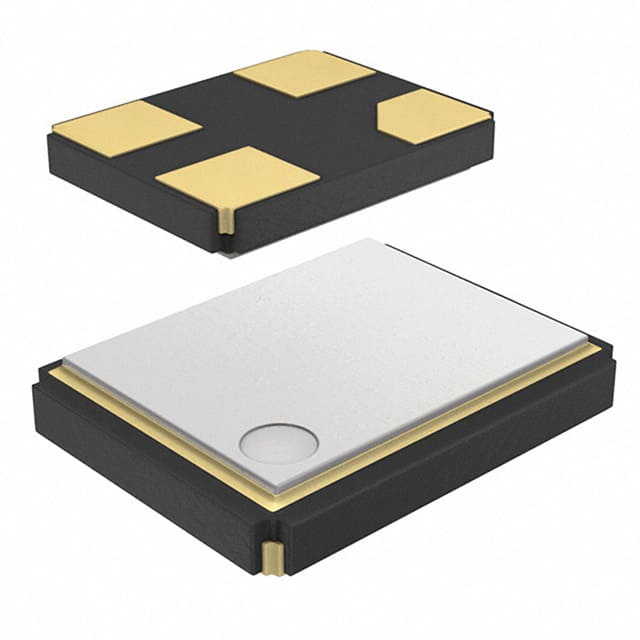

KC2520B24.5760C10E00 XTAL OSC XO 24.5760MHZ CMOS SMD. This surface-mount oscillator from Kyocera AVX operates at 24.576 MHz with CMOS output and ±50ppm frequency stability.
Mfr Part #:

KC2520B24.5760C10E00

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
XTAL OSC XO 24.5760MHZ CMOS SMD. This surface-mount oscillator from Kyocera AVX operates at 24.576 MHz with CMOS output and ±50ppm frequency stability.
✓ Total Stock: 1,520 pcs
$ Price Range: $1.27

KC2520B24.5760C10E00 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,520 pcs
On Request
1520 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KC2520B24.5760C10E00 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Length
Mounting Type
Operating Temperature
Output
Type
Voltage
Width
View Similar Products (0)

KC2520B24.5760C10E00 Description

Short technical summary and product information.

The KC2520B24.5760C10E00 is a standard crystal oscillator (XO) from Kyocera AVX. It generates a 24.576 MHz clock signal with CMOS output. The device features a frequency stability of ±50ppm and operates from a supply voltage range of 1.6V to 3.63V, with a typical supply current of 5mA. It includes a standby (power down) function for power saving.



This oscillator is housed in a compact 4-SMD, no lead package measuring 2.50mm x 2.00mm x 0.70mm, suitable for surface mount assembly. The base resonator is a crystal, and the device is designed for -10°C to 70°C operating temperature range.



Typical applications include clock generation for microcontrollers, networking equipment, and consumer electronics where a stable CMOS clock is required.

KC2520B24.5760C10E00 Quick Information

Product Type: XO Oscillator
Series: KC2520B
Canonical Name: KC2520B24.5760C10E00
Subcategory: CMOS Oscillator

KC2520B24.5760C10E00 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

KC2520B24.5760C10E00 Estimated Pricing

Qty Low High
2,000+ $1.27 $1.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

KC2520B24.5760C10E00 Features

  • 24.576 MHz CMOS output oscillator.
  • ±50ppm frequency stability over temperature.
  • Operates from 1.6V to 3.63V supply.
  • Standby power-down function included.
  • Compact 2.5x2.0mm SMD package.

KC2520B24.5760C10E00 Applications

  • Provides clock for microcontrollers and SoCs.
  • Used in networking and communication equipment.
  • Suitable for industrial control systems.

KC2520B24.5760C10E00 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output frequency?

24.576 MHz.

What is the output logic type?

CMOS.

What is the frequency stability?

±50ppm.

What is the supply voltage range?

1.6V to 3.63V.

What is the operating temperature range?

-10°C to 70°C.

What is the package type?

4-SMD, No Lead, measuring 2.50mm x 2.00mm.

Is the KC2520B24.5760C10E00 RoHS compliant?

It is listed as RoHS3 Compliant, but this is unverified.
