| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Angle of Throw | |
| Circuit per Deck | |
| Contact Finish | |
| Contact Material | |
| Contact Timing | |
| Current Rating (Amps) | |
| Depth Behind Panel | |
| Index Stops | |
| Mounting Type | |
| Number of Decks | |
| Number of Poles per Deck | |
| Number of Positions | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

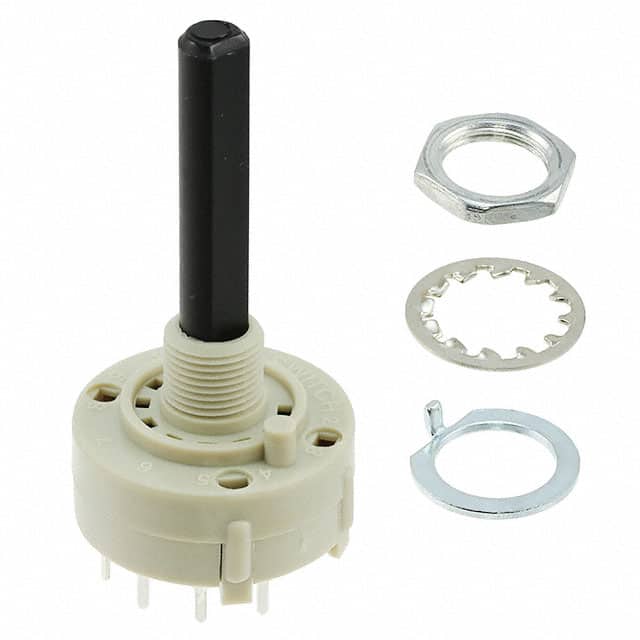

This E-Switch KC14A30.001NPS is a single-deck rotary switch with a 4-position configuration and SP4T circuit per deck. It is designed for panel mounting and features through-hole termination with PC pins. The switch has a voltage rating of 125V and a current rating of 350mA (AC).
The actuator is flatted with a diameter of 6.35mm and a length of 30.00mm. The depth behind the panel is 14.20mm. The contact finish is silver, and the contact material is copper alloy. The angle of throw is 30 degrees, and the index stops are fixed. The contact timing is non-shorting (BBM).
This rotary switch is suitable for applications requiring manual selection of multiple circuits or functions. Its robust construction and specific electrical and mechanical characteristics make it a reliable component for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 125V.
This rotary switch has 4 positions.
The current rating is 350mA (AC).
It supports panel mount and through-hole termination.
The actuator length is 30.00mm.
