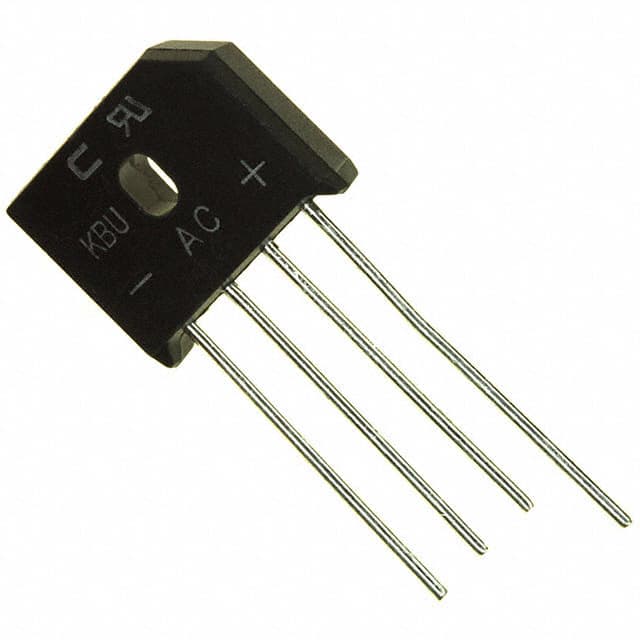

KBU35005-G The KBU35005-G is a single phase bridge rectifier from Comchip Technology, rated for 50V peak reverse voltage and 35A average rectified current, in a through-hole KBU package.
Mfr Part #:

KBU35005-G

Available from 1 distributors
Mfr Name: Comchip Technology
Comchip Technology
The KBU35005-G is a single phase bridge rectifier from Comchip Technology, rated for 50V peak reverse voltage and 35A average rectified current, in a through-hole KBU package.
✓ Total Stock: 25 pcs
$ Price Range: $1.20

KBU35005-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KBU35005-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Mounting Type
Operating Temperature
Supplier Device Package
Technology
Voltage
Weight
View Similar Products (0)

KBU35005-G Description

Short technical summary and product information.

The KBU35005-G is a single phase bridge rectifier from Comchip Technology, designed for converting AC to DC in power supply applications. It is rated for a maximum repetitive peak reverse voltage of 50V, with an RMS voltage rating of 35V and a DC blocking voltage of 50V. The device can handle an average rectified forward current of 35A when mounted on a suitable heatsink (100mm x 100mm x 1.6mm Cu plate).



Electrical characteristics include a maximum forward voltage of 1.1V at 17.5A DC, a reverse leakage current of 10µA at rated DC blocking voltage at 25°C, and 500µA at 125°C. The non-repetitive peak forward surge current is rated at 400A for a single 8.3ms half sine wave, making it suitable for applications with high inrush currents. The operating junction temperature range is -55°C to 150°C.



The rectifier is housed in a molded plastic KBU package (4-SIP) with UL 94V-0 flame retardant rating. It is through-hole mountable and can be mounted in any position. The device weighs approximately 7.40 grams and is UL recognized under file E349301. It is ideal for printed circuit board mounting and general purpose AC-DC rectification.

KBU35005-G Quick Information

Product Type: Bridge Rectifier
Series: KBU35005-G
Canonical Name: KBU35005-G Bridge Rectifier, Single Phase, 50V, 35A, KBU Package
Subcategory: Single Phase Bridge Rectifier

KBU35005-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

KBU35005-G Estimated Pricing

Qty Low High
800+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

KBU35005-G Features

  • Single phase bridge rectifier for 50V peak reverse voltage.
  • Rated for 35A average rectified forward current.
  • Designed for through-hole mounting in KBU package.
  • UL recognized under file E349301.
  • Handles 400A surge current for robust protection.

KBU35005-G Applications

  • Ideal for AC to DC power supply conversion.
  • Suitable for printed circuit board mounting.
  • Use in general purpose rectification circuits.
  • Applicable in battery chargers and power tools.

KBU35005-G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak reverse voltage rating of the KBU35005-G?

The maximum repetitive peak reverse voltage is 50V.

What is the average rectified current rating?

The average rectified forward current is 35A.

What is the forward voltage drop at 17.5A?

The maximum forward voltage is 1.1V at 17.5A DC.

What package type is the KBU35005-G available in?

It is available in a through-hole KBU (4-SIP) package.

What is the surge current rating?

The non-repetitive peak forward surge current is 400A for an 8.3ms single half sine wave.

What is the reverse leakage current at 25°C and 125°C?

Reverse leakage is 10µA at 25°C and 500µA at 125°C at rated DC blocking voltage.

What is the operating temperature range?

The operating junction temperature range is -55°C to 150°C.
