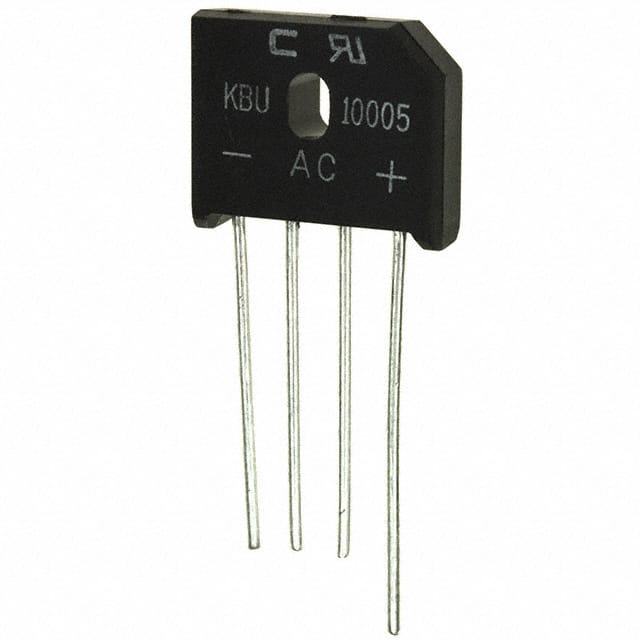

KBU10005-G The KBU10005-G is a single phase bridge rectifier rated for 50V peak repetitive reverse voltage and 10A average rectified current. It comes in a KBU through-hole package.
Mfr Part #:

KBU10005-G

Available from 1 distributors
Mfr Name: Comchip Technology
Comchip Technology
The KBU10005-G is a single phase bridge rectifier rated for 50V peak repetitive reverse voltage and 10A average rectified current. It comes in a KBU through-hole package.
✓ Total Stock: 400 pcs
$ Price Range: $1.08

KBU10005-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
400 pcs
On Request
400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KBU10005-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Mounting Type
Operating Temperature
Supplier Device Package
Technology
Voltage
View Similar Products (0)

KBU10005-G Description

Short technical summary and product information.

The KBU10005-G is a single phase bridge rectifier from Comchip Technology, designed for converting AC to DC. It features a standard technology and is rated for a peak repetitive reverse voltage of 50V and an average rectified current of 10A under a test condition of Vr=50V. The device is housed in a KBU package (4-SIP) with through-hole mounting, allowing for easy integration into printed circuit boards. It operates over a junction temperature range of -55°C to 150°C, making it suitable for a wide range of environments.

KBU10005-G Quick Information

Product Type: Bridge Rectifier
Canonical Name: KBU10005-G Bridge Rectifier, Single Phase, 50V, 10A
Subcategory: Single Phase Bridge Rectifier

KBU10005-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

KBU10005-G Estimated Pricing

Qty Low High
800+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

KBU10005-G Features

  • Single phase bridge rectifier design.
  • Rated for 50V peak reverse voltage.
  • Rated for 10A average rectified current.
  • Through-hole KBU package for easy mounting.
  • Operating temperature range from -55°C to 150°C.

KBU10005-G Applications

  • AC to DC conversion in power supplies
  • Used in battery charging circuits
  • Suitable for general purpose rectification
  • Bridge rectifier for industrial equipment
  • Ideal for input rectification in power converters

KBU10005-G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage of the KBU10005-G?

50 V

What is the average rectified current rating?

10 A (at Vr=50 V)

What package is the KBU10005-G available in?

KBU (4-SIP) through-hole package

What is the diode configuration?

Single phase bridge rectifier

What is the technology used?

Standard

What is the operating temperature range?

-55°C to 150°C (junction)

What is the mounting type?

Through hole
