| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Rectified Current | |
| Current | |
| Diode Type | |
| Forward Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Current | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Weight |

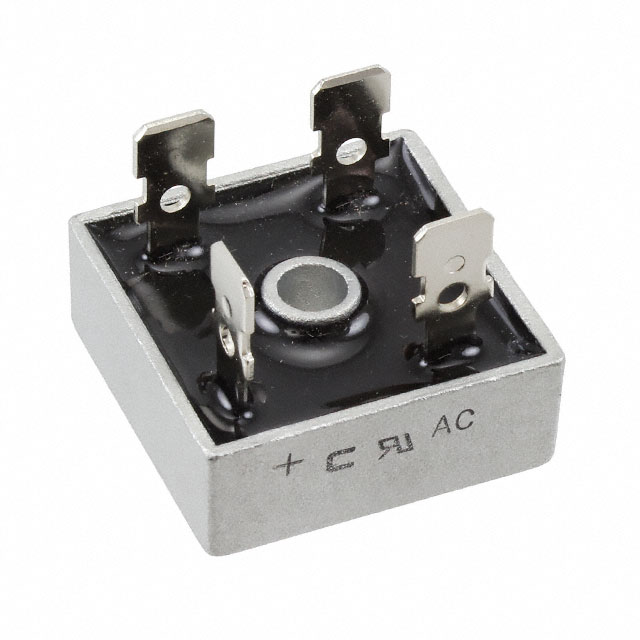

The KBPC3510-G is a single phase bridge rectifier from Comchip Technology. It is rated for a peak reverse voltage of 1kV and an average rectified current of 35A at a case temperature of 55°C. The device can handle a peak forward surge current of 400A (8.3ms half sine-wave). The maximum forward voltage drop is 1.1V at 17.5A peak, and the maximum reverse current is 10µA at rated DC blocking voltage and 25°C.
The rectifier operates over a junction temperature range of -55°C to 150°C and can be stored in the same range. It is housed in a 4-Square KBPC package with QC terminal mounting, weighing approximately 28.82 grams. The base is electrically isolated to 2000V. This component is suitable for general purpose AC to DC conversion in power supplies, battery chargers, and motor control circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.47 | $12.47 |
| 50+ | $7.02 | $7.02 |
| 100+ | $6.50 | $6.50 |
| 500+ | $5.58 | $5.58 |
| 1,000+ | $5.56 | $5.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1000V (1 kV).
35A at Tc=55°C.
1.1V maximum at 17.5A peak.
4-Square KBPC package with QC terminal mounting.
-55°C to 150°C (junction).
400A peak forward surge current (8.3ms half sine-wave).
RoHS3 compliant (unverified).
