The KBPC3508FP is a single phase bridge rectifier in the KBPC series from Diotec Semiconductor. It integrates four silicon standard recovery diodes in a bridge configuration, providing full-wave rectification from an AC input.
It is rated for a repetitive peak reverse voltage (VRRM) of 800V and a maximum RMS input voltage of 560V. The average rectified output current is 35A under resistive load and 28A under capacitive load, with a typical forward voltage of less than 1.1V at rated current. The device can handle peak forward surge currents up to 375A (50 Hz) and 400A (60 Hz). The reverse recovery time is typically 1500 ns.

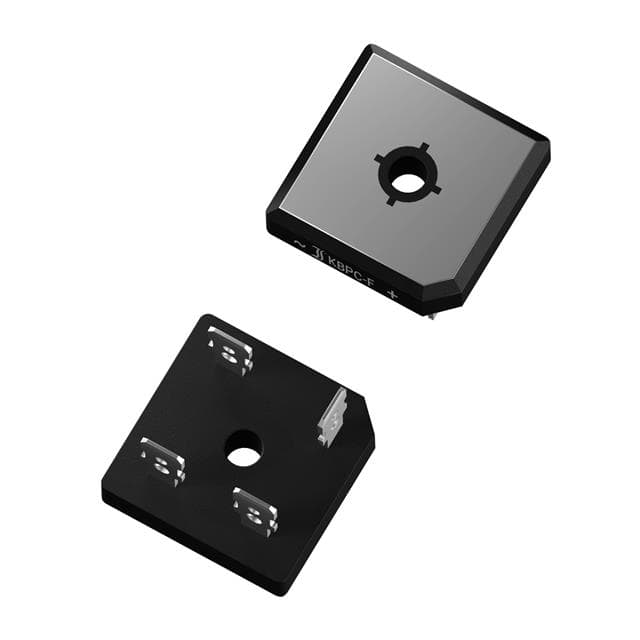

The rectifier is housed in a 4-Square KBPC35 plastic case with an isolated aluminium baseplate for chassis mounting. It features fast-on terminals (6.3mm) or can be soldered. The package weighs approximately 17g and the casting compound is UL 94V-0 rated. The standard package quantity is 240 pieces.
The KBPC3508FP is RoHS compliant (with exemption 7a), REACH compliant, and UL recognized (File E175067). It is designed for 50/60 Hz mains rectification and power supply applications. The operating junction temperature range is -50°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.19 | $4.19 |
| 10+ | $2.75 | $2.75 |
| 240+ | $1.72 | $1.72 |
| 720+ | $1.52 | $1.52 |
| 1,200+ | $1.44 | $1.44 |
| 2,160+ | $1.36 | $1.36 |
| 5,040+ | $1.30 | $1.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The repetitive peak reverse voltage (VRRM) is 800V, and the maximum RMS input voltage is 560V.
The average rectified output current is 35A under resistive load and 28A under capacitive load.
The typical forward voltage is less than 1.1V at 35A.
The typical reverse recovery time is 1500 ns.
It comes in a 4-Square KBPC35 package for chassis mounting with fast-on terminals.
The peak forward surge current is 375A at 50 Hz and 400A at 60 Hz.
Yes, it is RoHS compliant with exemption 7a.
