| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Weight |

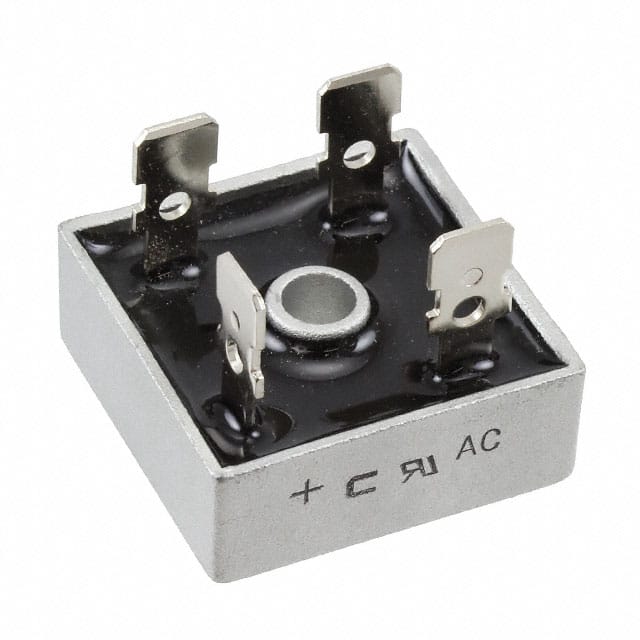

The KBPC2504-G is a single-phase bridge rectifier manufactured by Comchip Technology. It is rated for a peak reverse voltage of 400V and an average rectified current of 25A. The device features a standard technology with low forward voltage drop of 1.1V at 12.5A peak. Reverse current is limited to 10µA at 25°C. It can handle peak forward surge current of 400A at 8.3ms single half sine-wave. The operating junction temperature ranges from -55°C to 150°C. The rectifier is housed in a 4-Square KBPC package with QC terminal mounting. The package is electrically isolated with 2000V base isolation. It is RoHS compliant (unverified) and carries UL recognition (file #E349301). Typical applications include power supplies, industrial equipment, and AC-to-DC conversion where high current and voltage are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.91 | $11.91 |
| 50+ | $6.67 | $6.67 |
| 100+ | $6.17 | $6.17 |
| 500+ | $5.29 | $5.29 |
| 1,000+ | $5.23 | $5.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
400V.
25A.
1.1V maximum at 12.5A peak.
4-Square KBPC package with QC terminal mounting.
400A at 8.3ms single half sine-wave.
-55°C to 150°C (junction).
QC Terminal.
