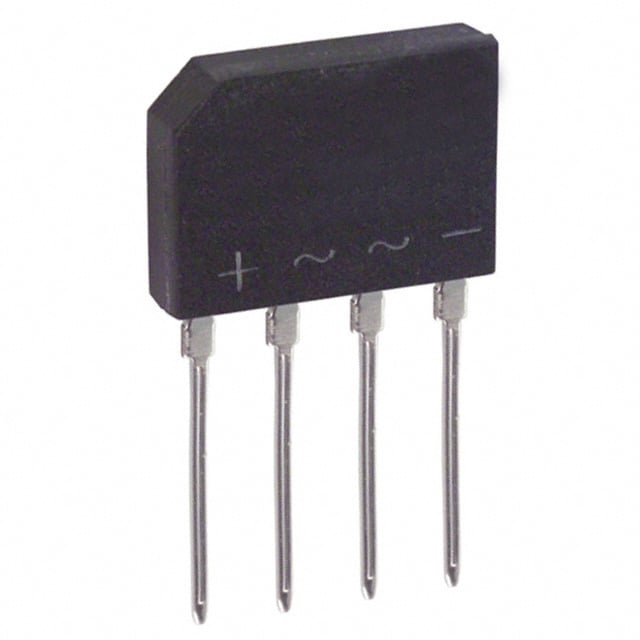

The KBP210G is a 2.0A glass passivated bridge rectifier from Diodes Incorporated, designed for single-phase full-wave rectification. It has a peak repetitive reverse voltage of 1000V and a DC blocking voltage of 1000V, with an RMS reverse voltage of 700V. The device can handle a non-repetitive peak forward surge current of 65A (8.3ms half sine-wave) and has an I²t rating of 17.5 A²s for fusing considerations. The maximum forward voltage drop per element is 1.1V at 2A and 25°C. Minimum reverse breakdown voltage is 1000V at 5µA. The device operates over a junction temperature range of -65°C to +150°C, with typical thermal resistance of 14°C/W junction-to-case.
The bridge rectifier is built with glass passivated die construction for high reliability and low reverse leakage current. The case is molded plastic with UL 94V-0 flammability rating, and the leads are tin-plated for solderability. The part is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is packaged in 35 pieces per tube. The KBP210G is ideal for printed circuit board applications requiring a compact, through-hole bridge rectifier with high surge capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
| 35+ | $0.61 | $0.61 |
| 105+ | $0.51 | $0.51 |
| 525+ | $0.39 | $0.39 |
| 1,015+ | $0.36 | $0.36 |
| 2,030+ | $0.33 | $0.33 |
| 5,005+ | $0.29 | $0.29 |
| 10,010+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak repetitive reverse voltage (VRRM) is 1000 V.
The average rectified output current (IO) is 2.0 A at TC = +105°C.
The maximum forward voltage drop per element is 1.1 V at IF = 2 A and TJ = +25°C.
The non-repetitive peak forward surge current (IFSM) is 65 A for an 8.3 ms single half sine-wave.
The junction operating and storage temperature range is -65°C to +150°C.
The KBP210G is available in a through-hole KBP (4-SIP) package.
