| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

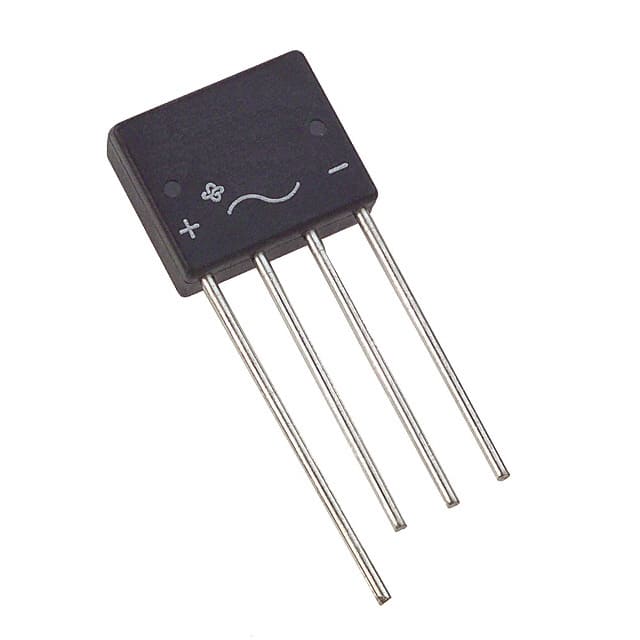

The Vishay Dale KBL04-E4/51 is a single-phase bridge rectifier ideal for printed circuit boards. It offers a maximum repetitive peak reverse voltage of 400V and a maximum average forward current of 4.0A at 50°C.
This rectifier has a high surge current capability of 200A and a low DC reverse current of 5μA at 25°C. The maximum instantaneous forward drop is 1.1V at 4.0A. It operates within a temperature range of -50°C to 150°C (TJ).
The KBL04-E4/51 is housed in a KBL package and is designed for through-hole mounting. Its plastic-passivated junction and high case dielectric strength make it suitable for general-purpose use in AC/DC bridge full-wave rectification applications.
Typical applications include power supplies, adapters, audio equipment, and home appliances. The component meets RoHS3 compliance standards and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum average forward current is 4.0 A at 50°C.
The peak forward surge current is 200 A for a single sine-wave superimposed on rated load.
The maximum instantaneous forward drop is 1.1 V at 4.0 A.
The maximum DC reverse current is 5 μA at 25°C and 1.0 mA at 125°C, both at rated DC blocking voltage.
The maximum repetitive peak reverse voltage is 400 V.
The operating temperature range is -50°C to 150°C (TJ).
The component is in a 4-SIP, KBL package.
