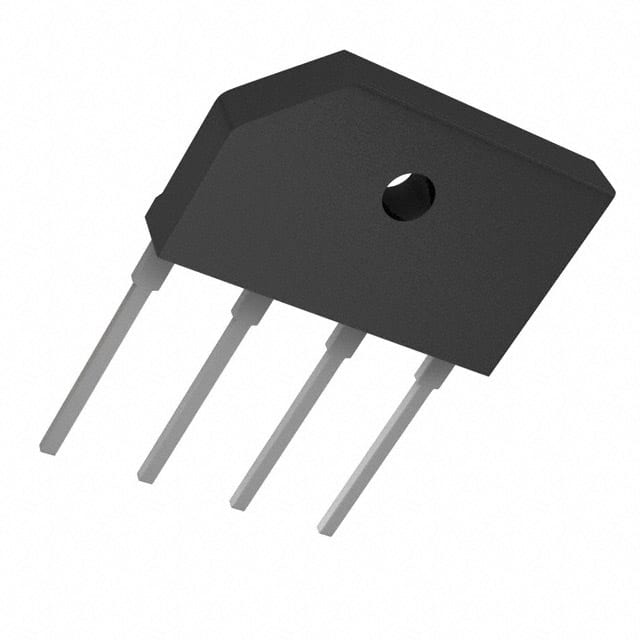

KBJ4005G Single phase bridge rectifier, 50V peak repetitive reverse voltage, 4A average output current, in a KBJ through-hole package.
Mfr Part #:

KBJ4005G

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
Single phase bridge rectifier, 50V peak repetitive reverse voltage, 4A average output current, in a KBJ through-hole package.
✓ Total Stock: 78 pcs

KBJ4005G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
78 pcs
On Request
78 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KBJ4005G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Forward Voltage
Junction Capacitance
Mounting Type
Operating Temperature
Supplier Device Package
Technology
Voltage
Weight
View Similar Products (0)

KBJ4005G Description

Short technical summary and product information.

The KBJ4005G is a glass passivated single-phase bridge rectifier from Diodes Incorporated. It is rated for a peak repetitive reverse voltage of 50V and an average rectified output current of 4.0A at TC=115°C. The device can handle non-repetitive peak forward surge currents up to 120A (8.3ms half-sine-wave). Forward voltage is typically 1.0V at 2.0A. Maximum reverse leakage current is 5.0µA at 25°C and 500µA at 125°C.



The rectifier is built with glass passivated die construction for high reliability and features a high case dielectric strength of 1500Vrms. It is UL recognized under File Number E94661. The KBJ4005G is housed in a molded plastic KBJ package with UL 94V-0 flammability rating. Terminals are tin plated leads, solderable per MIL-STD-202, Method 208. Mounting is through hole for #6 screw with a maximum torque of 5.0 in-lbs. Weight is approximately 4.6 grams.



This component is RoHS3 compliant with lead-free finish and has Moisture Sensitivity Level 1 (unlimited) per J-STD-020C. The operating junction temperature range is -65°C to 150°C. It is suitable for general purpose AC to DC rectification in power supplies, battery chargers, and other PCB applications.

KBJ4005G Quick Information

Product Type: Bridge Rectifier
Canonical Name: KBJ4005G 4A Glass Passivated Bridge Rectifier, 50V
Subcategory: Single Phase Bridge Rectifier

KBJ4005G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free Finish

KBJ4005G Features

  • Glass passivated die construction for reliability.
  • Rated for 50V peak repetitive reverse voltage.
  • 4.0A average rectified output current.
  • 120A non-repetitive surge current rating.
  • RoHS3 compliant and MSL Level 1.

KBJ4005G Applications

  • Ideal for printed circuit board power supplies.
  • Used in AC to DC conversion circuits.
  • Suitable for general purpose rectification.
  • Applicable in battery charger circuits.

KBJ4005G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage of the KBJ4005G?

50V.

What is the average rectified output current?

4.0A at TC=115°C.

What is the forward voltage drop?

1.0V at IF=2.0A.

What is the surge current rating?

120A for 8.3ms half-sine-wave.

What is the operating temperature range?

-65°C to 150°C (junction).

Is the KBJ4005G RoHS compliant?

Yes, RoHS3 compliant with lead-free finish.

What is the package type?

4-SIP KBJ through-hole package.
