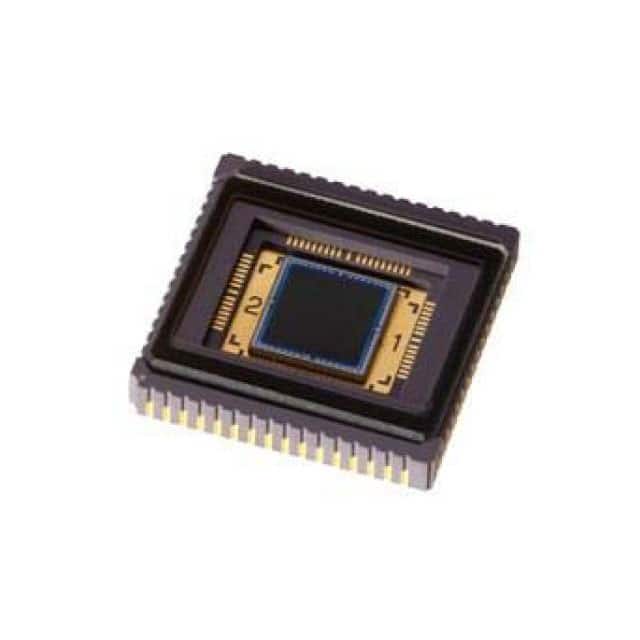

KAI-01050-ABA-FD-BA The ON Semiconductor KAI-01050-ABA-FD-BA is a 1-megapixel CCD image sensor. It features a 1024x1024 active pixel array and supports readout speeds up to 120 frames per second.
Mfr Part #:

KAI-01050-ABA-FD-BA

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor KAI-01050-ABA-FD-BA is a 1-megapixel CCD image sensor. It features a 1024x1024 active pixel array and supports readout speeds up to 120 frames per second.
✓ Total Stock: 3 pcs
$ Price Range: $1.50

KAI-01050-ABA-FD-BA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
3 pcs
3 pcs On Request 1 On Request On Request On Request On Request On Request

KAI-01050-ABA-FD-BA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Active Pixel Array
Architecture
Frames per Second
Lead Spacing
Number of Outputs
Operating Temperature
Pixel Size
Supplier Device Package
Type
Voltage

KAI-01050-ABA-FD-BA Description

Short technical summary and product information.

The KAI-01050-ABA-FD-BA is a 1-megapixel Interline Transfer CCD image sensor from ON Semiconductor, built on the TRUESENSE 5.5 micron platform. This sensor offers a 1024x1024 active pixel array with a pixel size of 5.5µm x 5.5µm.



It provides a flexible readout architecture supporting 1, 2, or 4 outputs for full resolution readout up to 120 frames per second. Key features include broad dynamic range, excellent imaging performance, low dark current, negligible lag, and low smear. The sensor also incorporates a vertical overflow drain structure to suppress image blooming and enable electronic shuttering for precise exposure control.



Designed for applications such as industrial imaging, medical imaging, and security, the KAI-01050-ABA-FD-BA is available in a 64-CLCC package. Its common pin-out with other TRUESENSE platform devices allows for single camera designs to support multiple sensor family members.

KAI-01050-ABA-FD-BA Quick Information

Product Type: Image Sensor
Series: 5.5 micron Interline Transfer CCD Platform
Canonical Name: KAI-01050-ABA-FD-BA 1 Megapixel Interline Transfer CCD Image Sensor
Subcategory: CCD

KAI-01050-ABA-FD-BA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KAI-01050-ABA-FD-BA Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

KAI-01050-ABA-FD-BA Features

  • 1024x1024 active pixel array.
  • 5.5µm x 5.5µm pixel size.
  • Up to 120 frames per second readout.
  • Low noise and excellent smear performance.
  • 64-CLCC package with AR coated cover glass.

KAI-01050-ABA-FD-BA Applications

  • Ideal for industrial imaging applications.
  • Suitable for medical imaging systems.
  • Used in security and surveillance cameras.
  • Leverages TRUESENSE CCD platform.

KAI-01050-ABA-FD-BA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resolution of the KAI-01050-ABA-FD-BA image sensor?

The KAI-01050-ABA-FD-BA has 1024H x 1024V active pixels.

What is the pixel size of this CCD image sensor?

The pixel size is 5.5µm x 5.5µm.

What is the maximum frame rate for the KAI-01050-ABA-FD-BA?

The maximum frame rate is 120 fps with a quad output.

What is the operating temperature range for this sensor?

The operating temperature range is -50°C to 70°C (TA).

What package type is the KAI-01050-ABA-FD-BA supplied in?

It is supplied in a 64-CLCC package.
