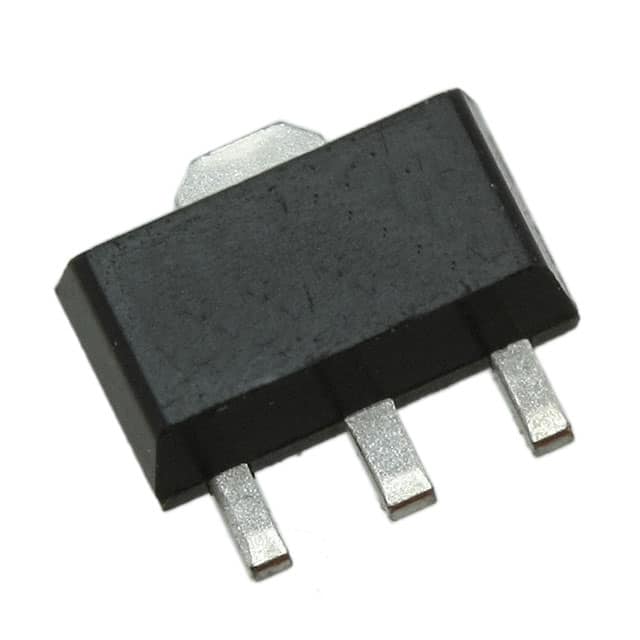

KA78L05AMTF The ON Semiconductor KA78L05AMTF is a 5V positive fixed linear voltage regulator capable of supplying up to 100mA. It is designed for applications requiring a stable output voltage with built-in protection features.
Mfr Part #:

KA78L05AMTF

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor KA78L05AMTF is a 5V positive fixed linear voltage regulator capable of supplying up to 100mA. It is designed for applications requiring a stable output voltage with built-in protection features.
✓ Total Stock: 434,363 pcs
$ Price Range: $0.30

KA78L05AMTF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
430,476 pcs
On Request
430476 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,887 pcs
On Request
3887 pcs On Request 1 On Request On Request 12+10 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KA78L05AMTF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Current
Mounting Type
Number of Outputs
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

KA78L05AMTF Description

Short technical summary and product information.

The KA78L05AMTF from ON Semiconductor is a monolithic integrated circuit voltage regulator designed for applications requiring a supply current up to 100mA. This device provides a fixed 5V output voltage with an accuracy of 5% and features thermal overload protection and short circuit current limiting.



With a minimum input voltage requirement of 7V and a maximum input voltage of 30V, the KA78L05AMTF is suitable for a wide range of power supply designs. Its dropout voltage is typically 1.7V, making it efficient for various applications. The regulator operates within a junction temperature range of 0°C to 150°C and is housed in a surface-mount SOT-89-3 package.



Key electrical characteristics include a quiescent current of 5.5mA maximum, line regulation of up to 150mV, and load regulation of up to 60mV. The device also offers a Power Supply Rejection Ratio (PSRR) of 80dB at 120Hz. Its robust design makes it a reliable choice for power management in electronic systems.

KA78L05AMTF Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: KA78L05AMTF 5V 100mA Positive Fixed Linear Voltage Regulator
Subcategory: Linear

KA78L05AMTF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

KA78L05AMTF Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

KA78L05AMTF Features

  • Provides a stable 5V output voltage.
  • Maximum output current of 100mA.
  • Includes thermal overload protection.
  • Features short circuit current limiting.
  • Surface mount SOT-89-3 package.

KA78L05AMTF Applications

  • Suitable for general voltage regulation.
  • Ideal for low-power electronic circuits.
  • Used in battery-powered devices.
  • Applicable in consumer electronics.
  • Useful in industrial control systems.

KA78L05AMTF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the KA78L05AMTF?

The KA78L05AMTF provides a nominal output voltage of 5V.

What is the maximum output current for the KA78L05AMTF?

The maximum output current for the KA78L05AMTF is 100mA.

What are the protection features of the KA78L05AMTF?

The KA78L05AMTF includes Over Temperature and Short Circuit protection features.

What is the operating temperature range for the KA78L05AMTF?

The operating temperature range for the KA78L05AMTF is -40°C to 125°C.

What package type is the KA78L05AMTF available in?

The KA78L05AMTF is available in a SOT-89-3 package.

Is the KA78L05AMTF RoHS compliant?

The KA78L05AMTF is RoHS3 Compliant.
