| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
364 pcs
|
364 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duty Cycle | |
| Fault Protection | |
| Frequency | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Topology | |
| Voltage |

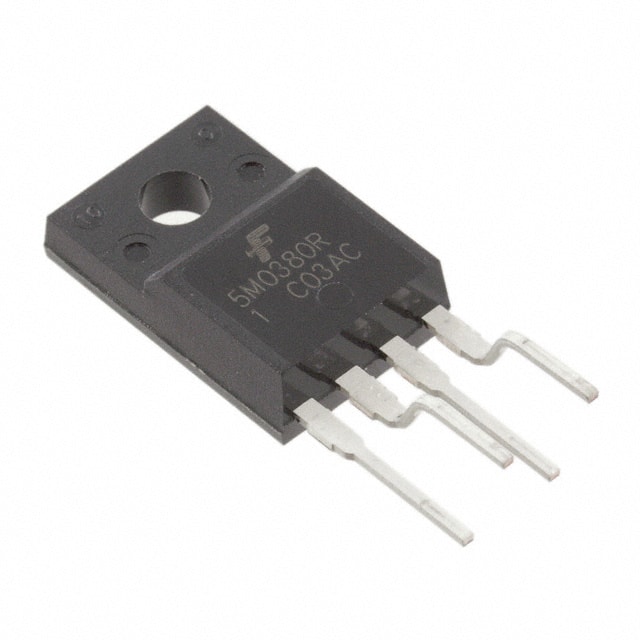

The KA5M0380RYDTU from On Semiconductor is an integrated circuit designed for AC/DC conversion applications, specifically as an offline switcher. It is housed in a TO-220-4 Full Pack, Formed Leads package, suitable for through-hole mounting.
This component operates within a supply voltage range of 9V to 30V, with a breakdown voltage of 800V. It features an internal switch and supports both Flyback and Forward topologies. The switching frequency is 67kHz, and it offers a duty cycle of 77%. Fault protection mechanisms include current limiting, over temperature, and over voltage protection.
The operating temperature range for this IC is -40°C to 85°C (TA). It is supplied in a TO-220F-4L (Forming) package.
Environmental compliance includes RoHS3 compliance, MSL 1 (Unlimited) moisture sensitivity, and REACH unaffected status.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9V to 30V.
TO-220F-4L (Forming) package with through-hole mounting.
-40°C to 85°C (TA).
67 kHz.
Current limiting, over temperature, and over voltage.
15V.
Flyback and forward.
