Mfr Part #:

KA3525A

Mfr Name: Harting

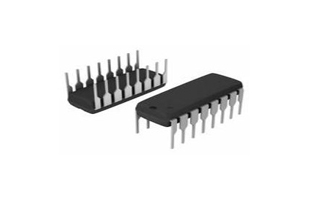

The KA3525A is a PWM switching controller IC designed for power regulation circuits. It features a 50mA reference current, 16-pin PDIP package, and operates within 0°C to 70°C.

✓ Total Stock: 4,343 pcs

$ Price Range: $2.23

KA3525A Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	4,343 pcs On Request	4343 pcs	On Request	1	On Request	On Request	2019	On Request	On Request

KA3525A Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Harting
Operating Temperature Range	0°C to 70°C
Power Dissipation	100mW
Storage Temperature	°C ~ °C
Supply Voltage	40V
Tape & Reel	No

View Similar Products (0)

KA3525A Description

Short technical summary and product information.

The KA3525A is a monolithic integrated circuit used as a pulse width modulation (PWM) controller. It includes control circuitry such as a voltage reference, error amplifier, oscillator, soft start, and output driver, making it suitable for switch-mode power supplies and other electronic regulation circuits. The device operates with a supply voltage of around 40V and provides a reference output current of approximately 50mA. Its operating temperature range is from 0°C to 70°C, with storage capabilities from -65°C to 150°C. The package type is a 16-pin PDIP, designed for through-hole mounting. The IC generates two complementary PWM signals, with feedback circuitry controlling the output voltage. It features shutdown protection when feedback signals approach limits, and soft start functionality to prevent inrush current. The device's output sink current is 500mA, and power dissipation is 100mW, suitable for various power regulation applications.

KA3525A Quick Information

Product Type: Pulse Width Modulation Controller

Canonical Name: KA3525A Monolithic PWM Controller

KA3525A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

KA3525A Estimated Pricing

Qty	Low	High
1+	$2.23	$2.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

KA3525A Features

Integrated voltage reference of 50mA
Operates with 40V supply voltage
16-pin PDIP package for easy mounting
Includes soft start and shutdown protection
Generates dual PWM signals

KA3525A Applications

Used in switch-mode power supplies
Suitable for electronic voltage regulation
Ideal for inverter circuits
Power control in industrial applications

KA3525A FAQs

6 frequently asked questions generated from this part’s specifications.

What is the supply voltage range for the KA3525A?

The KA3525A operates with a supply voltage of around 40V.

What is the reference output current of the KA3525A?

The reference output current is approximately 50mA.

What is the operating temperature range of the KA3525A?

It operates from 0°C to 70°C.

What package type is used for the KA3525A?

It comes in a 16-pin PDIP package.

Is the KA3525A RoHS compliant?

Yes, it is RoHS3 compliant.

What is the maximum output sink current of the KA3525A?

The maximum output sink current is 500mA.
