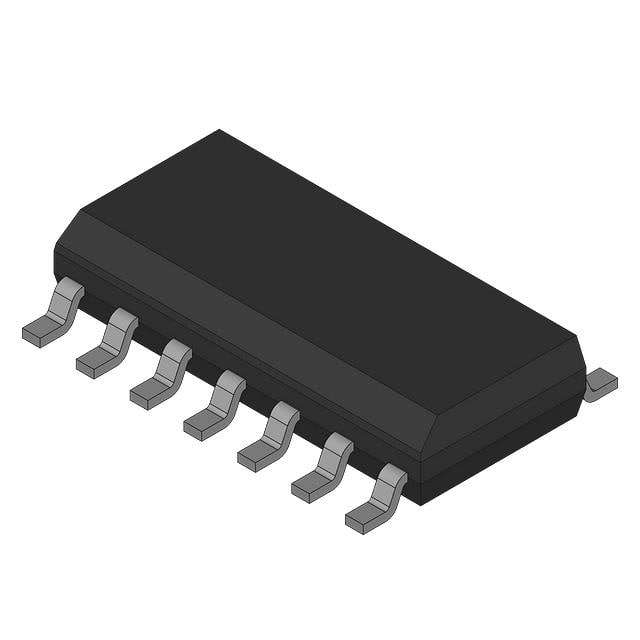

KA2901DTF The On Semiconductor KA2901DTF is a quad comparator designed for general-purpose applications. It features a surface mount package and operates within a temperature range of -40°C to 85°C.
Mfr Part #:

KA2901DTF

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor KA2901DTF is a quad comparator designed for general-purpose applications. It features a surface mount package and operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 27,000 pcs

KA2901DTF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
27,000 pcs
On Request
27000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KA2901DTF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Number of Elements
Operating Temperature
Output Type
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

KA2901DTF Description

Short technical summary and product information.

The KA2901DTF from On Semiconductor is a quad comparator integrated circuit. Designed for general-purpose applications, this device offers a robust solution for various signal comparison tasks.



Key electrical characteristics include a typical current consumption of 2.5mA and an output type supporting DTL, MOS, Open-Collector, and TTL interfaces. The comparator operates within a temperature range of -40°C to 85°C, making it suitable for a wide array of environmental conditions.



This component is housed in a 14-SOIC package, requiring surface mounting for integration into electronic assemblies. Its design with 4 elements provides flexibility for complex circuit configurations. The device is specified with a voltage characteristic of 7mV at 5V.



The KA2901DTF is RoHS3 compliant, and its Moisture Sensitivity Level (MSL) is 1, indicating unlimited shelf life under recommended storage conditions. REACH status is unaffected.

KA2901DTF Quick Information

Product Type: Comparator
Canonical Name: KA2901DTF Quad Comparator
Subcategory: General Purpose

KA2901DTF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KA2901DTF Features

  • Quad general-purpose comparator IC.
  • Operates from -40°C to 85°C.
  • Supports DTL, MOS, Open-Collector, TTL outputs.
  • Surface mount 14-SOIC package.
  • RoHS3 compliant with MSL 1.

KA2901DTF Applications

  • Suitable for general signal comparison.
  • Used in temperature-sensitive environments.
  • Integrates easily onto PCBs.
  • Supports multiple output logic types.

KA2901DTF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the KA2901DTF?

The operating temperature range is -40°C to 85°C.

What package type is the KA2901DTF available in?

The KA2901DTF is available in a 14-SOIC (0.154", 3.90mm Width) package.

What is the RoHS status of the KA2901DTF?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the KA2901DTF?

The Moisture Sensitivity Level is 1 Unlimited.

What type of comparator is the KA2901DTF?

The KA2901DTF is a General Purpose comparator.

How many elements are in the KA2901DTF?

There are 4 elements in the KA2901DTF.

KA2901DTF Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
LM2901M
LM2901M
On Semiconductor
The LM2901M from On Semiconductor is a general-purpose comparator IC. It is available in a 14-SOP surface-mount package.
View Part
