Mfr Part #:

K9F2G08U0B-PCB0

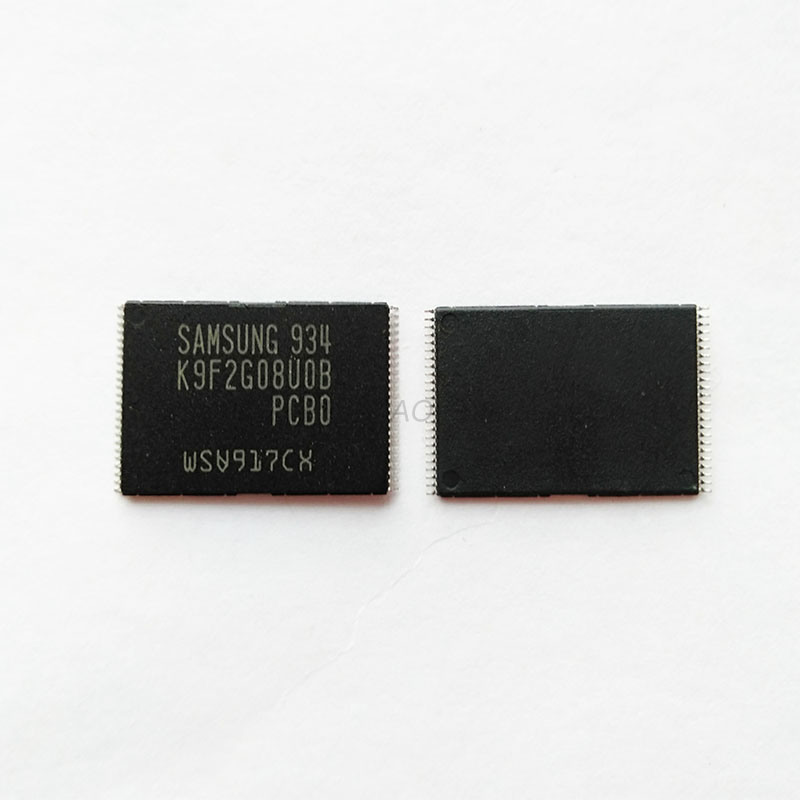

The Samsung K9F2G08U0B-PCB0 is a 256MB NAND Flash Memory IC. It operates at 3.3V and comes in a TSOP-48 package, suitable for portable applications.

✓ Total Stock: 24,028 pcs

$ Price Range: $1.28

K9F2G08U0B-PCB0 Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	17,100 pcs On Request	17100 pcs	On Request	1	On Request	On Request	1134+	On Request	On Request
Romaks Technologies ✓ Non-Authorised Inventory information	6,696 pcs On Request	6696 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	232 pcs On Request	232 pcs	On Request	1	On Request	On Request	1125+	On Request	On Request

K9F2G08U0B-PCB0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Samsung Electronics
Lead Spacing	0.5 mm
Lead Style	Gull Wing
Mounting Type	Surface Mount
Number of Pins	48
Operating Voltage	3.3V
SVHC Present	Present

View Similar Products (0)

K9F2G08U0B-PCB0 Description

Short technical summary and product information.

The Samsung K9F2G08U0B-PCB0 is a 256MB NAND Flash Memory IC designed for non-volatile storage applications. It operates within a voltage range of 2.7V to 3.6V, with a typical supply of 3.3V. This memory IC features a TSOP-48 package and is designed for surface mount installation.

Key electrical characteristics include a fast read cycle time of 25ns per byte, a page program time of 200µs, and a block erase time of 1.5ms. The K9F2G08U0B-PCB0 offers extended reliability with 100,000 program/erase cycles, supported by an Error Correcting Code (ECC) with a real-time mapping-out algorithm. Its NAND cell structure provides a cost-effective solution for solid-state applications.

This flash memory is suitable for various portable applications requiring non-volatile storage, such as solid-state file storage. The I/O pins serve as ports for address, data input/output, and command input. The on-chip write controller automates program and erase functions, including internal verification and margining of data.

K9F2G08U0B-PCB0 Quick Information

Product Type: NAND Flash Memory

Series: K9F2G08U0B

Canonical Name: Samsung K9F2G08U0B-PCB0 256MB NAND Flash Memory

Subcategory: Flash Memory

K9F2G08U0B-PCB0 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

K9F2G08U0B-PCB0 Estimated Pricing

Qty	Low	High
1+	$1.28	$1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

K9F2G08U0B-PCB0 Features

256MB NAND Flash Memory IC.
Operates at 3.3V supply voltage.
TSOP-48 package for surface mounting.
100,000 program/erase cycle reliability.
Fast read, program, and erase times.

K9F2G08U0B-PCB0 Applications

Suitable for portable applications.
Used in solid-state file storage.
Non-volatile data storage needs.
Embedded system memory.

K9F2G08U0B-PCB0 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage for the K9F2G08U0B-PCB0?

The operating voltage for the K9F2G08U0B-PCB0 is 3.3V, with a range of 2.7V to 3.6V.

What is the storage capacity of the K9F2G08U0B-PCB0?

The K9F2G08U0B-PCB0 has a storage capacity of 256MB.

What package type is the K9F2G08U0B-PCB0 available in?

The K9F2G08U0B-PCB0 is available in a TSOP-48 package.

How many pins does the K9F2G08U0B-PCB0 have?

The K9F2G08U0B-PCB0 has 48 pins.

What is the program/erase cycle reliability of this flash memory?

The K9F2G08U0B-PCB0 offers extended reliability with 100,000 program/erase cycles.

What is the typical page program time for the K9F2G08U0B-PCB0?

The typical page program time for the K9F2G08U0B-PCB0 is 200µs for a (2K+64)Byte page.

What is the typical block erase time?

The typical block erase time is 1.5ms for a (128K+4K)Byte block.
