| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | 42310 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

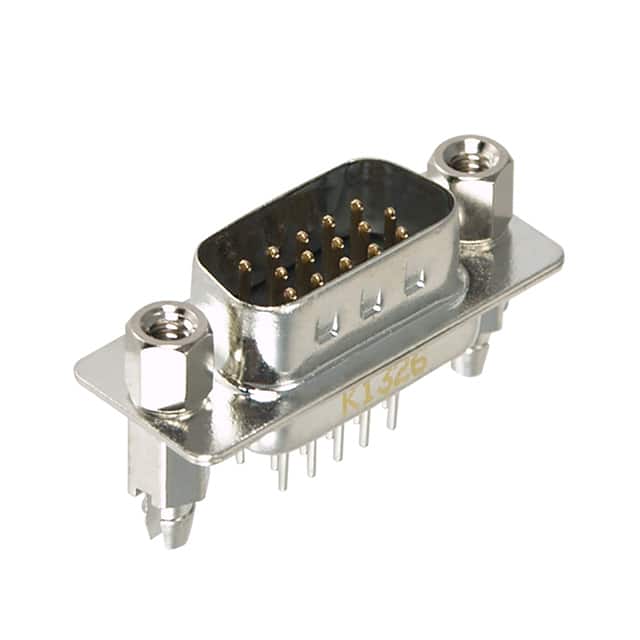

The Kycon K86X-ED-15P-BRJ is a high density D-Sub plug connector designed for reliable signal interconnections. It features 15 male pin contacts arranged in 3 rows, with a shell size of 1 (DE, E) high density layout. The connector uses through hole mounting with solder termination for secure PCB attachment.
Electrical performance includes a current rating of 1.5A per contact. The contacts are finished with gold flash for corrosion resistance and reliable mating. The steel shell is nickel plated for durability and EMI shielding. The connector includes board locks and grounding indents for secure mechanical retention and improved ground connection.
The flange feature includes board side (4-40) and mating side female screwlock (4-40) for robust panel mounting. The insulator material meets UL94 V-0 flammability rating for safety compliance. This connector is suitable for applications requiring high density signal connections in industrial, telecommunications, and computing equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.35 | $6.35 |
| 10+ | $5.40 | $5.40 |
| 25+ | $5.06 | $5.06 |
| 56+ | $4.78 | $4.78 |
| 112+ | $4.55 | $4.55 |
| 280+ | $4.26 | $4.26 |
| 504+ | $4.09 | $4.09 |
| 1,008+ | $3.90 | $3.90 |
| 2,520+ | $3.65 | $3.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
Through hole mounting with solder termination.
1.5A per contact.
Gold flash.
Steel with nickel plating.
Yes, it includes board locks and grounding indents.
UL94 V-0.
