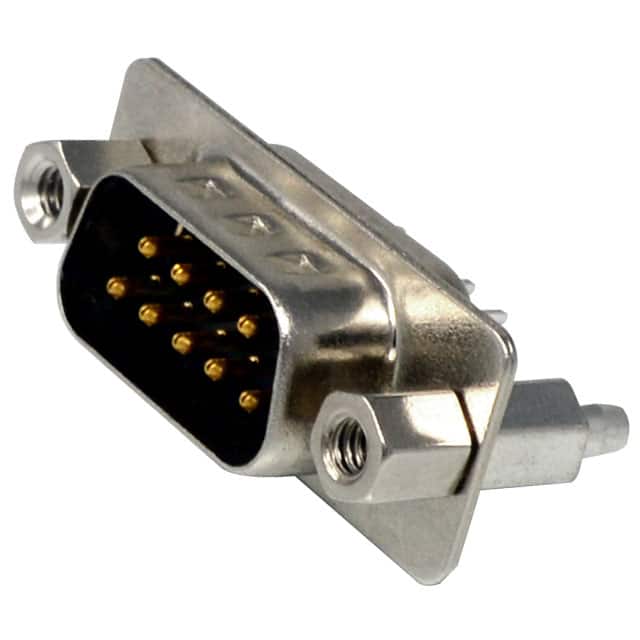

The K85X-ED-9P-BRJ is a 9-position D-Sub plug connector from Kycon Inc., designed for reliable signal connections in various electronic systems. This connector features a male pin configuration arranged in 2 rows, with a shell size of 1 (DE, E). It offers through-hole mounting with solder termination for secure PCB attachment. The contact material is brass with a gold flash plating on the mating end and tin on the termination end, with a nickel underplate. The insulator is made of PBT with glass-fiber reinforcement, rated UL94 V-0, and the shell is steel with nickel plating. The connector includes board lock and grounding indents for enhanced mechanical stability and EMI protection. Flange features include board side (4-40) and mating side female screwlock (4-40). Electrical ratings include a current rating of 2A, rated voltage of 30V RMS, withstanding voltage of 500V RMS AC for 1 minute, insulation resistance greater than 1000 MΩ at 500V DC, and contact resistance of 13 mΩ maximum. It operates over a temperature range of -55°C to +105°C. The K85X-ED-9P-BRJ is RoHS compliant, making it suitable for environmentally conscious designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.54 | $5.54 |
| 10+ | $4.71 | $4.71 |
| 25+ | $4.41 | $4.41 |
| 56+ | $4.17 | $4.17 |
| 112+ | $3.97 | $3.97 |
| 280+ | $3.72 | $3.72 |
| 504+ | $3.57 | $3.57 |
| 1,008+ | $3.40 | $3.40 |
| 2,520+ | $3.19 | $3.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
2A.
30V RMS.
Through hole.
-55°C to +105°C.
Yes, RoHS compliant.
Gold flash.
