| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | 37 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Voltage Rating |

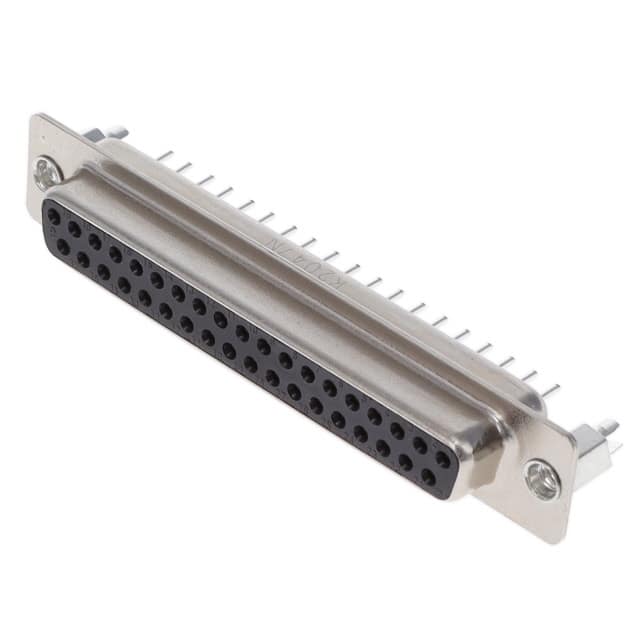

The Kycon Inc. K85X-CD-37S-BR is a 37-position D-Sub receptacle connector designed for vertical through-hole mounting. It features 2 rows of female sockets with gold flash contacts on brass terminals, ensuring reliable signal transmission.
The connector is housed in a nickel-plated steel shell with a black PBT insulator reinforced with glass fiber, rated UL94 V-0 for flammability. It includes a board lock feature and a board side (4-40) flange for secure attachment to the PCB.
Electrical specifications include a 2A current rating, 30V RMS voltage rating, a maximum contact resistance of 13 milliohms, and an insulation resistance greater than 1000 megohms at 500V DC. The operating temperature range spans from -55°C to +105°C, making it suitable for a wide range of industrial and commercial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.29 | $7.29 |
| 10+ | $6.19 | $6.19 |
| 28+ | $5.76 | $5.76 |
| 56+ | $5.48 | $5.48 |
| 112+ | $5.22 | $5.22 |
| 252+ | $4.93 | $4.93 |
| 504+ | $4.70 | $4.70 |
| 1,008+ | $4.47 | $4.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
37 positions.
2A.
30V RMS.
Through hole.
-55°C to +105°C.
Brass contacts with gold flash plating.
Yes, it is RoHS3 compliant.
