| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
421 pcs
|
421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Efficiency | |
| Mounting Type | |
| Operating Temperature |

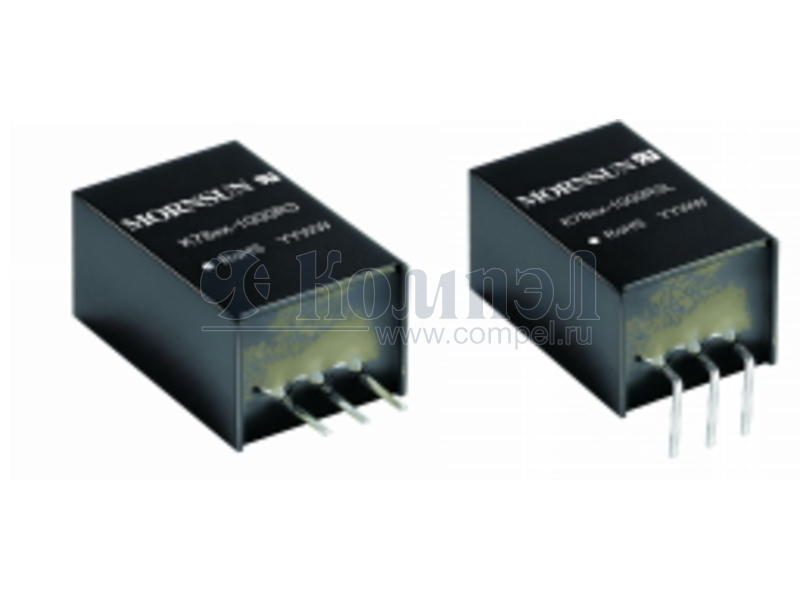

The Mornsun K7805-1000 is a non-isolated, regulated single output DC/DC converter from the K78xx-1000R3(L) series. It offers a 5V output voltage with a power rating of 1000mW. Key electrical features include high efficiency up to 96% and a low no-load input current as low as 0.1mA.
Designed for versatility, this converter supports negative output and includes output short-circuit protection (SCP). It operates within a wide ambient temperature range of -40℃ to +85℃, making it suitable for various environmental conditions. The unit is pin-compatible with LM78xx series.
The K7805-1000 is housed in a SIP3 package, designed for through-hole mounting. Its compact dimensions of 11.5 x 9 x 17.5 mm allow for integration into space-constrained applications. The converter holds IEC60950, UL60950, and EN62368 approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $165.89 | $165.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The K7805-1000 has a 5V output voltage.
The output power is 1000mW.
The K7805-1000 has a maximum efficiency of 96%.
The operating ambient temperature range is -40°C to +85°C.
The K7805-1000 is in a SIP3 package.
