| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,713 pcs
|
1713 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length, Right Angle | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Material | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Features | |
| Housing Material | |
| Illumination | |
| Illumination Type, Color | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Relative Humidity | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

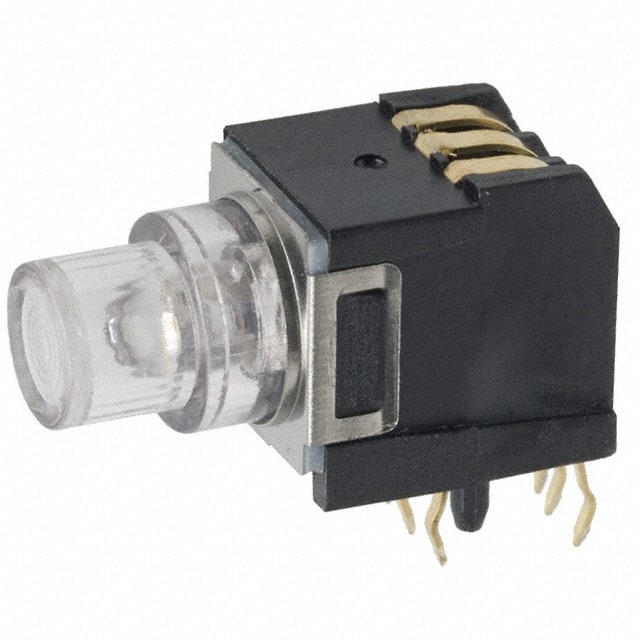

The C&K Components K5V1RD43T is an illuminated tactile switch designed for applications requiring both backlighting and switching functionality. This switch features a momentary action with a Single Pole Double Throw (SPDT) contact arrangement, providing flexibility in circuit control.
Key electrical specifications include a contact rating of 0.1A at 32VDC and a power rating range of 0.02 VA to 1.0 VA. The mechanical characteristics include an operating force of 4.0 N (400gf) and a travel of 1.2 mm. The switch is illuminated with a red LED and has a translucent actuator.
Designed for reliability, it features gold-plated dome contacts and a thermoplastic UL94 V0 housing. The operating temperature range is -40°C to 85°C. Mounting is via through hole with a right-angle orientation, and the dimensions are 9.1 mm x 9.1 mm x 12.4 mm.
This tactile switch is suitable for various applications, including network infrastructure, automotive, and medical devices, where space-saving and ergonomic design are important.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating force is 4.0 N.
The total travel is 1.2 mm.
The contact resistance is less than 150 milliohms.
-40°C to 85°C.
The ingress protection rating is IP40.
The housing is made of thermoplastic UL94 V0.
Yes, it is compatible with lead-free soldering profiles.
