| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
215 pcs
|
215 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |

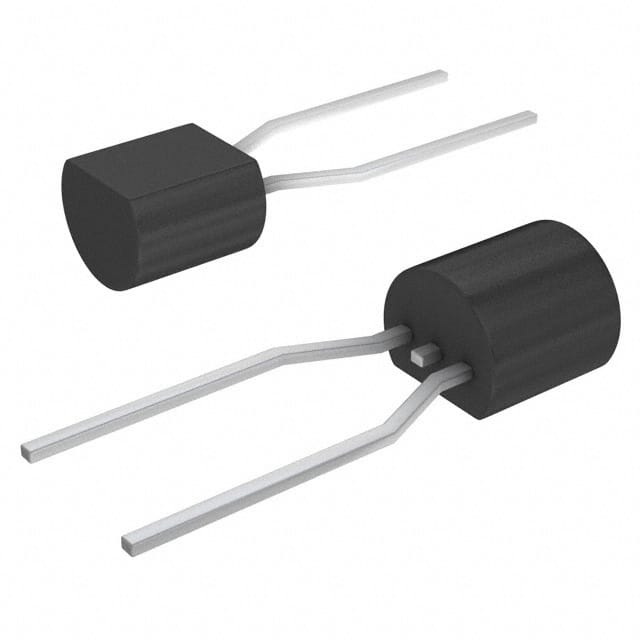

The Littelfuse K1500E70AP is a silicon bilateral voltage-triggered switch belonging to the Kxxxzy series of SIDACs. It features glass-passivated junctions for enhanced reliability in harsh environments.
This SIDAC has a breakover voltage range of 140V to 170V and can handle an on-state RMS current of up to 1A. Its peak on-state voltage is 1.5V at 1A for Kxxx0y variants and 3.0V for Kxxx2y variants. The device exhibits a dynamic holding current of up to 150mA and a switching resistance of 100Ω.
Applications for this SIDAC include high voltage power supplies, natural gas igniters, high-pressure sodium lamps, and Xenon flash ignition. The component is supplied in a TO-92 package, suitable for through-hole mounting.
Key electrical specifications include a repetitive peak off-state voltage of 90V and a repetitive peak off-state current of 5μA. It also offers a critical rate of rise of on-state current of 150 A/μs and a critical rate of rise of off-state voltage of 1500 V/μs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The breakover voltage range for the K1500E70AP SIDAC is 140V to 170V.
The maximum on-state RMS current for the K1500E70AP is 1A.
The K1500E70AP is supplied in a TO-92 package.
The operating temperature range for the K1500E70AP is -40°C to 125°C (TJ).
