| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
260 pcs
|
260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Resistance | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Power Consumption | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

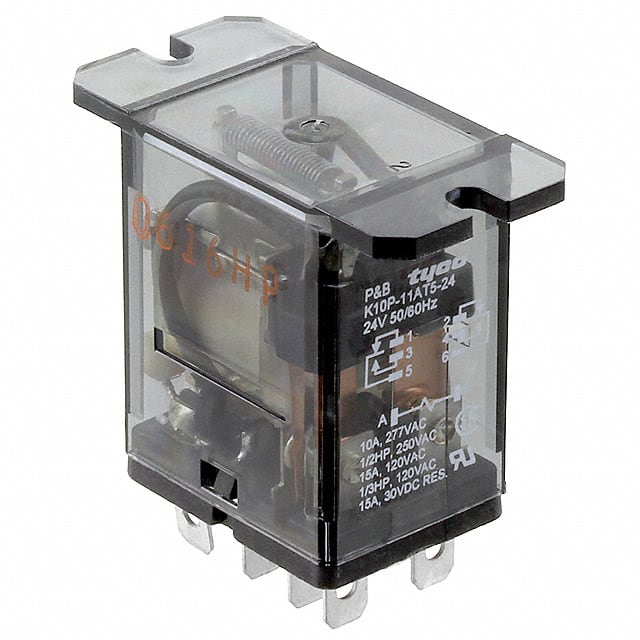

The TE Connectivity K10P-11AT5-24 is a general purpose relay designed for various electrical applications. It features a DPDT (2 Form C) contact configuration, allowing for versatile switching capabilities.
This relay has a maximum switching current rating of 15A and a switching voltage of up to 120VAC. The coil operates at 24VAC with a coil current of 52mA. It includes essential parameters such as a must-operate voltage of 20.4VAC and a must-release voltage of 2.4VAC, with an operate time of 13ms and a release time of 10ms.
The contact material is Silver Cadmium Oxide, known for its durability and performance. The operating temperature range is from -45°C to 70°C, making it suitable for a variety of environmental conditions. The relay is designed for panel mounting and features quick connect terminals for easy installation.
Compliance information indicates RoHS3 compliance and an MSL of 1. The part number is K10P-11AT5-24, and it is part of the K10 series from TE Connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 24VAC.
The contact form is DPDT (2 Form C).
The maximum switching current is 15A.
The operating temperature range is -45°C to 70°C.
It is designed for panel mounting.
