| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
87,000 pcs
|
87000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

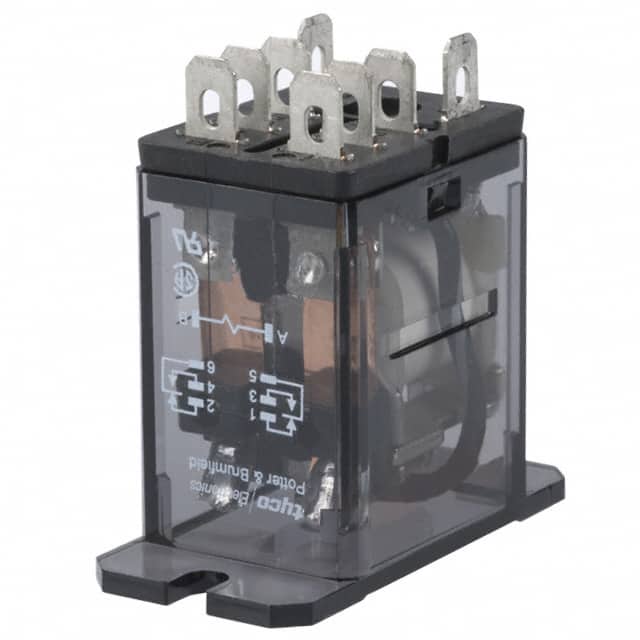

This TE Connectivity K10P-11AT5-120 is a general purpose relay designed for power applications. It features a DPDT (2 Form C) contact configuration, capable of handling 15 Amps.
The relay operates with a 120VAC coil voltage and has a coil current of 11 mA. Key electrical specifications include a must-operate voltage of 102 VAC and a must-release voltage of 12 VAC. The operate time is 13 ms, and the release time is 10 ms.
Designed for robust applications, this relay has a contact material of Silver Cadmium Oxide (AgCdO) and a switching voltage rating of up to 120VAC. The operating temperature range is from -45°C to 70°C.
Mounting is achieved via chassis mount, and the termination style is Plug In, Quick Connect - 0.187" (4.7mm). The coil insulation is rated Class B. This is a non-latching type relay.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact form is DPDT (2 Form C).
The contact rating is 15 A.
The coil voltage is 120VAC.
The operating temperature range is -45°C to 70°C.
