Mfr Part #:

K100

Mfr Name: Anritsu

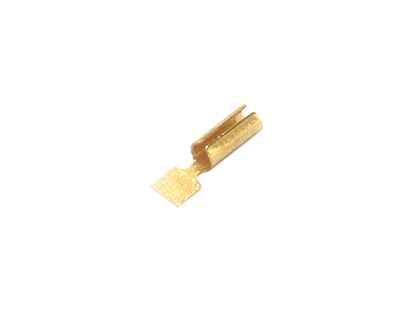

The Anritsu K110-3-R is a stress relief contact, also known as a sliding contact, designed for simplifying connections to K100 and K100B bead pins. It provides excellent quality microwave connections up to 40 GHz.

✓ Total Stock: 7 pcs

$ Price Range: $1.87

K100 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	7 pcs On Request	7 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

K100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Anritsu
Approval Agency	up to 40 GHz
Pin Diameter	0.30 mm

View Similar Products (0)

K100 Description

Short technical summary and product information.

The Anritsu K110-3-R stress relief contact, also referred to as a sliding contact, is engineered to facilitate simplified connections to K100 and K100B bead pins. The installation process involves sliding the contact over the bead pin and then attaching the tab to the circuit trace.

This component is specifically designed for use with microstrip traces on Duroid®, with a minimum trace width of 0.41 mm. It offers an excellent quality microwave connection to a 0.30 mm pin without the necessity of soldering, and is designed to work with K connectors operating at frequencies up to 40 GHz.

The K110-3-R provides crucial stress relief, protecting circuits from the effects of temperature variations, shock, and vibration. It is RoHS compliant, containing less than the Maximum Concentration Values for Lead, Mercury, Cadmium, Hexavalent Chromium, PBB, and PBDE per EU directive 2002/95/EC, with an exemption for lead as an alloying element in copper.

Installation can be achieved through gap welding, wire bonding, or soldering, as detailed in the installation notes. Anritsu also offers a step drill, model 01-108, to assist machinists in creating the required concentric holes for bead installation.

K100 Quick Information

Product Type: Stress Relief Contact

Canonical Name: K110-3-R Stress Relief Contact

Subcategory: Transistors - Special Purpose

K100 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

K100 Estimated Pricing

Qty	Low	High
1+	$1.87	$1.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

K100 Features

Simplifies connection to bead pins.
Provides excellent microwave connection.
Designed for microstrip traces.
Operates up to 40 GHz.
Offers stress relief for circuits.

K100 Applications

Used with K100 and K100B bead pins.
Suitable for microstrip trace connections.
Protects circuits from environmental stress.
Enables high-frequency microwave connections.

K100 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the frequency range of the K100 transistor?

The K100 transistor has a frequency range up to 40 GHz.

What is the pin diameter of the K100 transistor?

The pin diameter of the K100 transistor is 0.30 mm.

What is the trace width requirement for the K100 transistor?

The trace width for the K100 transistor is 0.41 mm or larger.

What is the packaging quantity for the K100?

The standard package quantity for the K100 is 100 units.

Is the K100 compliant with RoHS standards?

Yes, the K100 is RoHS compliant.
