| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
295 pcs
|
295 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

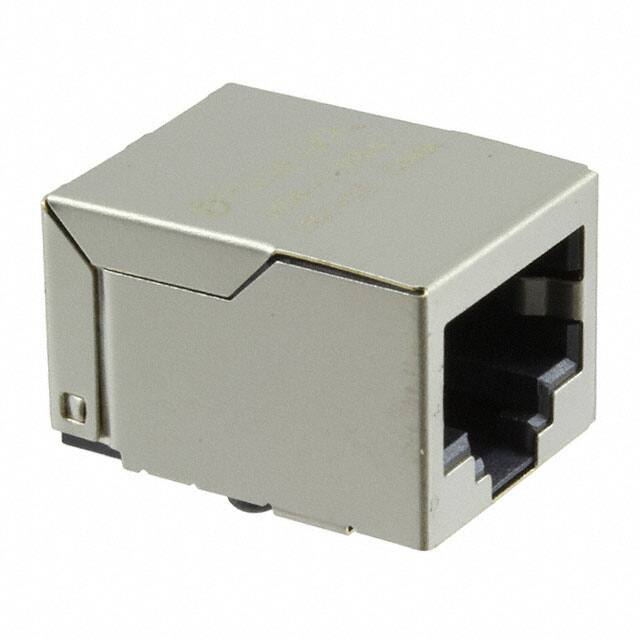

The JXD6-1100NL is a modular RJ45 connector jack designed for surface mount applications. It features a shielded design to reduce electromagnetic interference, with a 90° right angle orientation and a downward tab direction for secure mating. The jack has 4 cores per port and includes a board guide for easy alignment during assembly.
This connector uses a copper alloy contact material with gold plating for reliable electrical connections. It operates over a temperature range of -40°C to 85°C, suitable for industrial environments. The height above board is 0.531 inches (13.49mm).
The JXD6-1100NL belongs to the category of modular connector jacks with magnetics, indicating integrated magnetic components for signal conditioning. It is terminated by solder and has a surface mount mounting type. This part is generally used in networking equipment requiring a compact, shielded RJ45 interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.44 | $4.44 |
| 10+ | $3.78 | $3.78 |
| 25+ | $3.54 | $3.54 |
| 50+ | $3.37 | $3.37 |
| 100+ | $3.21 | $3.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Surface Mount.
Yes, it is shielded.
-40°C to 85°C.
90° Angle (Right).
Gold.
1 port.
Yes, it includes a board guide.
