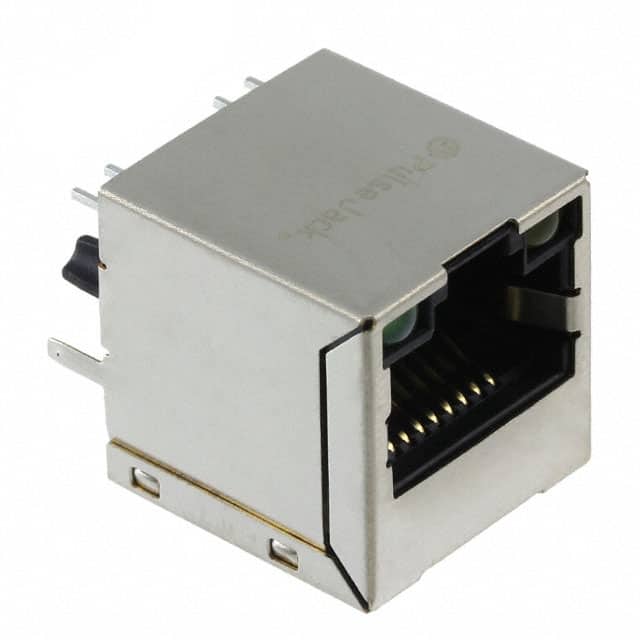

JXD2-0015NL Pulse Electronics JXD2-0015NL is a single port RJ45 jack with integrated magnetics, shielded, through hole mount, with gold plated phosphor bronze contacts.
Mfr Part #:

JXD2-0015NL

Available from 2 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
Pulse Electronics JXD2-0015NL is a single port RJ45 jack with integrated magnetics, shielded, through hole mount, with gold plated phosphor bronze contacts.
✓ Total Stock: 19 pcs
$ Price Range: $5.39

JXD2-0015NL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JXD2-0015NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Conflict Minerals
Connector Type
Contact Finish
Contact Material
Features
Halogen Free
Height Above Board
LED Color
Lead Style
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
SVHC Present
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

JXD2-0015NL Description

Short technical summary and product information.

The Pulse Electronics JXD2-0015NL is a single port RJ45 modular connector jack with integrated magnetics, designed for 10/100/1000 Base-T Ethernet applications. This shielded connector features a vertical orientation and through hole solder termination for reliable PCB mounting.



The connector includes 8 contacts with gold plating over phosphor bronze, ensuring excellent conductivity and corrosion resistance. It operates over a wide temperature range of -40°C to 85°C, making it suitable for industrial environments. The part includes a board guide for easy alignment during assembly and a user-selectable tab direction for flexible cable orientation.



The JXD2-0015NL is RoHS3 compliant and has an MSL rating of Level 1 (unlimited). It is packaged in a through hole format with solder termination, suitable for automated or manual assembly processes.

JXD2-0015NL Quick Information

Product Type: Modular Connector Jack with Magnetics
Canonical Name: Pulse Electronics JXD2-0015NL RJ45 Jack with Magnetics
Subcategory: Modular Connector Jacks With Magnetics

JXD2-0015NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

JXD2-0015NL Estimated Pricing

Qty Low High
800+ $5.39 $5.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

JXD2-0015NL Features

  • Single port RJ45 jack with integrated magnetics.
  • Shielded for EMI protection in Ethernet applications.
  • Through hole solder termination for secure PCB mounting.
  • Gold plated phosphor bronze contacts for reliable connectivity.
  • Wide operating temperature range -40°C to 85°C.

JXD2-0015NL Applications

  • 10/100/1000 Base-T Ethernet networking equipment.
  • Industrial control and automation systems.
  • Data communication and telecommunication devices.
  • Embedded systems requiring rugged connectivity.

JXD2-0015NL FAQs

6 frequently asked questions generated from this part’s specifications.
What type of connector is the JXD2-0015NL?

It is a single port RJ45 modular connector jack with integrated magnetics.

What Ethernet standards does this connector support?

It supports 10/100/1000 Base-T Ethernet applications.

Is the JXD2-0015NL shielded?

Yes, it is a shielded connector.

What is the mounting type for this connector?

It is a through hole mount connector with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What contact material and finish does the JXD2-0015NL use?

The contacts are made of phosphor bronze with a gold finish.
