| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
352 pcs
|
352 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
352 pcs
|
352 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
141 pcs
|
141 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

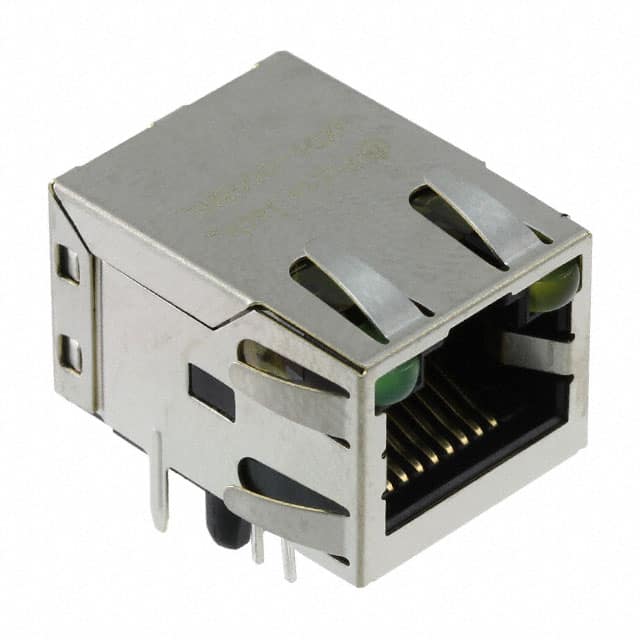

The JXD1-0008NL from Pulse Electronics is a single-port RJ45 modular connector jack with integrated magnetics. It features a through-hole mounting design with a 90° right-angle orientation and an upward tab direction. The connector is fully shielded with an EMI finger for enhanced electromagnetic interference protection and includes a board lock for secure attachment to the PCB.
This jack supports 10/100 Base-TX Ethernet with AutoMDIX, enabling automatic crossover detection. It contains four cores per jack and is equipped with green and yellow LED indicators for link/activity status. The contacts are made of copper alloy with a gold finish, ensuring reliable electrical performance and corrosion resistance.
Designed for industrial temperature ranges from -40°C to 85°C, the JXD1-0008NL is suitable for harsh environments. The connector height above board is 13.80 mm (0.543 inches). It is RoHS3 compliant, MSL level 1 (unlimited), and REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.25 | $6.25 |
| 10+ | $5.31 | $5.31 |
| 25+ | $4.98 | $4.98 |
| 50+ | $4.74 | $4.74 |
| 100+ | $4.51 | $4.51 |
| 250+ | $4.23 | $4.23 |
| 500+ | $4.03 | $4.03 |
| 1,000+ | $3.84 | $3.84 |
| 2,500+ | $3.60 | $3.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through Hole.
-40°C to 85°C.
90° Angle (Right).
Shielded with EMI Finger.
Green - Yellow.
10/100 Base-TX and AutoMDIX.
Gold.
