Mfr Part #:

JXD1-0005NL

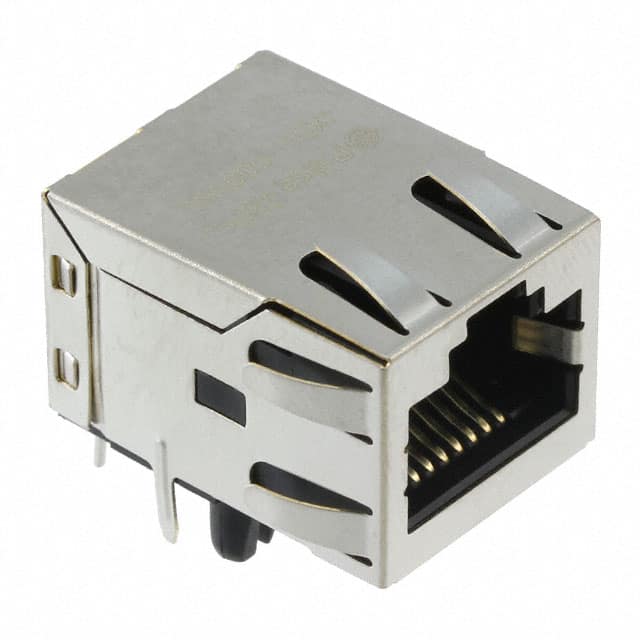

Name: JXD1-0005NL
Brand: Pulse Electronics
SKU: JXD1-0005NL

Mfr Name: Pulse Electronics

Description:

CONN JACK 1PORT 100 BASE-TX PCB

Stock on Request

JXD1-0005NL Description

Short technical summary and product information.

CONN JACK 1PORT 100 BASE-TX PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

JXD1-0006NL

Pulse Electronics

CONN JACK 1PORT 100 BASE-TX PCB

Category	Modular Connector Jacks With Magnetics
Manufacturer Name	Pulse Electronics
Applications	10/100 Base-TX, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Material	Copper Alloy
Features	Board Lock
Height Above Board	0.543" (13.80mm)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Cores per Jack	4
Number of Ports	1
Number of Rows	1
Operating Temperature	-40°C ~ 85°C
Orientation	90° Angle (Right)
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder
