| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
71 pcs
|
71 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

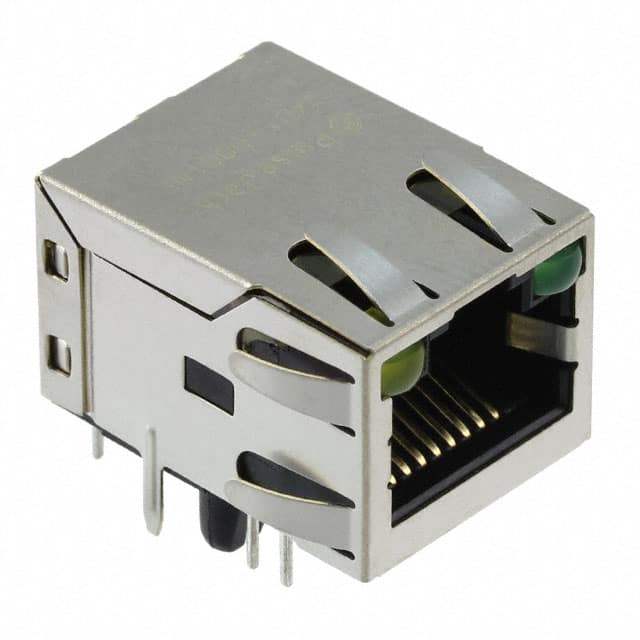

The JXD1-0001NL is a 1-port RJ45 modular connector jack with integrated magnetics from Pulse Electronics. It is designed for through-hole mounting with a 90° right-angle orientation and solder termination. The jack is fully shielded and features an EMI finger for improved electromagnetic compatibility. It includes a board guide for easy alignment during assembly. The connector supports 10/100/1000 Base-T Ethernet applications with AutoMDIX capability. It has a single row of 8 contacts with gold-plated phosphor bronze contacts. The jack is equipped with a yellow-green LED for status indication. The height above board is 0.543 inches (13.80 mm). It operates over a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.24 | $8.24 |
| 10+ | $7.00 | $7.00 |
| 25+ | $6.56 | $6.56 |
| 50+ | $6.25 | $6.25 |
| 100+ | $5.95 | $5.95 |
| 250+ | $5.58 | $5.58 |
| 500+ | $5.31 | $5.31 |
| 1,000+ | $5.06 | $5.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 8 positions (contacts) for a single port.
Through-hole mounting with solder termination.
RJ45.
1 port.
90° angle (right).
Yes, shielded with EMI finger.
-40°C to 85°C.
