| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

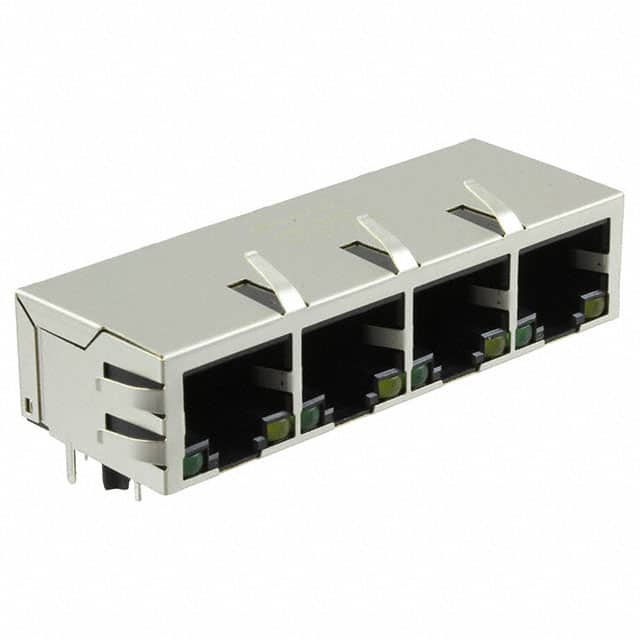

The Pulse Electronics JXD0-4015NL is a 4-port RJ45 modular jack with integrated magnetics designed for high-speed Ethernet applications. Each port features 8 cores and supports 10/100/1000 Base-T and AutoMDIX. The connector is through hole mounted with solder termination and has a 90° right angle orientation with tab down.
Shielding is provided with an EMI finger to reduce electromagnetic interference. The contact material is phosphor bronze with a gold finish for reliable connectivity. A board guide feature aids in alignment during assembly. The jack includes green and yellow LEDs for port status indication.
Operating temperature range is -40°C to 85°C, making it suitable for industrial environments. The height above board is 13.65mm. This connector is commonly used in networking equipment such as switches, routers, and hubs.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.37 | $26.37 |
| 10+ | $22.41 | $22.41 |
| 25+ | $21.01 | $21.01 |
| 50+ | $20.00 | $20.00 |
| 100+ | $19.05 | $19.05 |
| 250+ | $17.86 | $17.86 |
| 500+ | $17.01 | $17.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 ports.
Through hole.
8 cores.
Yes, shielded with EMI finger.
90° angle (right).
Green - Yellow.
10/100/1000 Base-T and AutoMDIX.
