JXD0-0019NL Pulse Electronics JXD0-0019NL is a shielded 1-port RJ45 modular jack with integrated magnetics, supporting 10/100/1000 Base-T Ethernet. It features a through-hole solder termination, board lock, and green/yellow LED indicators.
Mfr Part #:

JXD0-0019NL

Available from 2 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
Pulse Electronics JXD0-0019NL is a shielded 1-port RJ45 modular jack with integrated magnetics, supporting 10/100/1000 Base-T Ethernet. It features a through-hole solder termination, board lock, and green/yellow LED indicators.
✓ Total Stock: 26,759 pcs
$ Price Range: $5.06 - $8.24

JXD0-0019NL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
26,466 pcs
On Request
26466 pcs On Request 1 On Request On Request On Request On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
293 pcs
On Request
293 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JXD0-0019NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
LED Color
Lead Style
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
Shielding
Tab Direction
Termination
View Similar Products (0)

JXD0-0019NL Description

Short technical summary and product information.

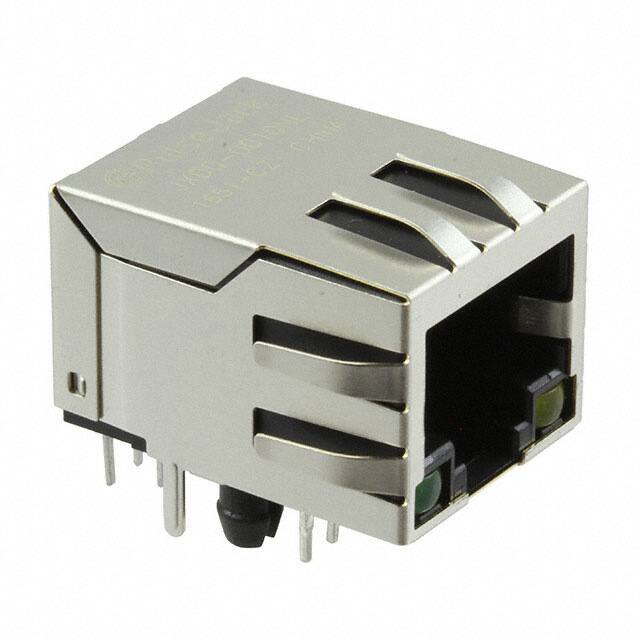

The Pulse Electronics JXD0-0019NL is a single-port RJ45 modular jack with integrated magnetics, designed for 10/100/1000 Base-T Ethernet applications. This shielded connector helps reduce electromagnetic interference in networking equipment.



The jack features 8 contacts with gold-plated phosphor bronze terminals for reliable connectivity. It is oriented at a 90-degree right angle with a downward tab direction, making it suitable for edge-mounted PCB layouts. The through-hole solder termination provides a secure mechanical and electrical connection.



Additional design features include a board lock for secure PCB retention and green/yellow LED indicators for link and activity status. The operating temperature range is -40°C to 85°C, supporting industrial environments. The component height above board is 0.537 inches (13.65 mm).

JXD0-0019NL Quick Information

Product Type: Modular Connector Jack with Magnetics
Canonical Name: Pulse Electronics JXD0-0019NL Shielded RJ45 Modular Jack with Magnetics
Subcategory: RJ45 Jack with Magnetics

JXD0-0019NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JXD0-0019NL Estimated Pricing

Qty Low High
1+ $8.24 $8.24
10+ $7.00 $7.00
25+ $6.56 $6.56
50+ $6.25 $6.25
100+ $5.95 $5.95
250+ $5.58 $5.58
500+ $5.31 $5.31
1,000+ $5.06 $5.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

JXD0-0019NL Features

  • Shielded RJ45 jack with integrated magnetics.
  • Supports 10/100/1000 Base-T Ethernet applications.
  • Through-hole solder termination with board lock.
  • Green and yellow LED indicators for status.
  • Operating temperature range -40°C to 85°C.

JXD0-0019NL Applications

  • Used in Gigabit Ethernet networking equipment.
  • Suitable for industrial temperature environments.
  • Ideal for PCB edge-mounted connector designs.
  • Provides EMI shielding in sensitive applications.

JXD0-0019NL FAQs

7 frequently asked questions generated from this part’s specifications.
What type of connector is the JXD0-0019NL?

It is a shielded RJ45 modular jack with integrated magnetics.

How many ports does this connector have?

This connector has 1 port.

What Ethernet standards does the JXD0-0019NL support?

It supports 10/100/1000 Base-T and AutoMDIX.

What is the mounting type for this part?

It is a through-hole mount component with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

Does the JXD0-0019NL have LED indicators?

Yes, it has green and yellow LED indicators.

What is the contact material and finish?

The contacts are made of phosphor bronze with a gold finish.
