Mfr Part #:

JXD0-0015NL

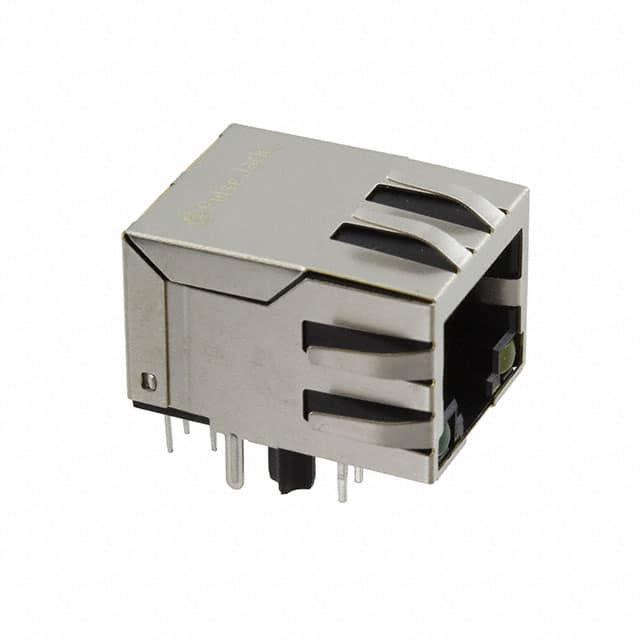

Name: JXD0-0015NL
Brand: Pulse Electronics
SKU: JXD0-0015NL

Mfr Name: Pulse Electronics

Description:

CONN JCK 1P 1000 BASE-T AUTOMDIX

Stock on Request

JXD0-0015NL Description

Short technical summary and product information.

CONN JCK 1P 1000 BASE-T AUTOMDIX

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

JXD0-0025NL

Pulse Electronics

CONN JACK 1PORT 1000 BASE-T PCB

Category	Modular Connector Jacks With Magnetics
Manufacturer Name	Pulse Electronics
Applications	10/100/1000 Base-T, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Material	Phosphor Bronze
Features	Board Lock
Height Above Board	0.537" (13.65mm)
LED Color	Green - Yellow
Mounting Type	Through Hole
Number of Cores per Jack	8
Number of Ports	1
Number of Rows	1
Operating Temperature	-40°C ~ 85°C
Orientation	90° Angle (Right)
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder
