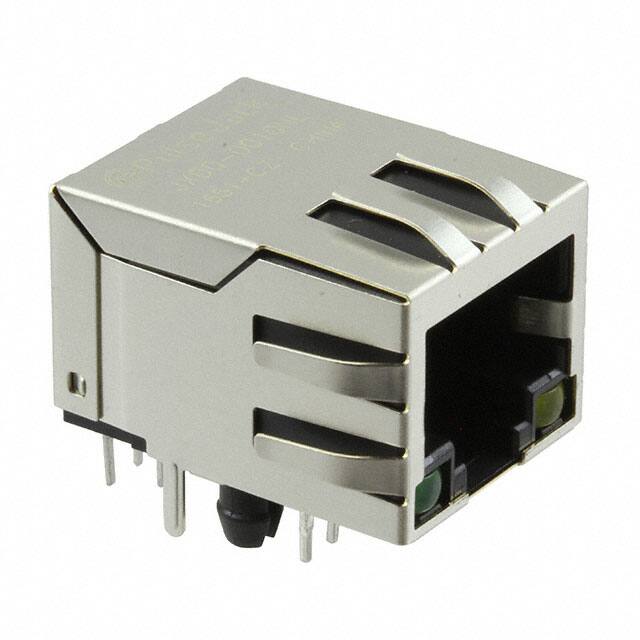

The JXD0-0010NL is a 1-port RJ45 modular jack with integrated magnetics manufactured by Pulse Electronics. This through-hole component features a right-angle (90°) orientation with a downward tab direction, making it suitable for edge-mounted PCB applications where space is constrained. The connector is shielded with an EMI finger to reduce electromagnetic interference.
The jack supports 4 cores per port and includes board lock features for secure attachment. Contact material is phosphor bronze with gold finish, ensuring reliable electrical connections. The connector includes green and yellow LED indicators for status indication. Operating temperature range is -40°C to 85°C, suitable for industrial environments.
As part of the modular connector jack with magnetics category, this component integrates the necessary magnetic components (transformers, common mode chokes) for Ethernet applications, reducing external component count and simplifying PCB layout. The mounting height above board is 0.537 inches (13.65mm). Solder termination ensures compatibility with standard through-hole assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.08 | $8.08 |
| 10+ | $6.87 | $6.87 |
| 25+ | $6.44 | $6.44 |
| 50+ | $6.13 | $6.13 |
| 100+ | $5.84 | $5.84 |
| 250+ | $5.47 | $5.47 |
| 500+ | $5.21 | $5.21 |
| 1,000+ | $4.96 | $4.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through-hole mounting.
90° Angle (Right).
Yes, it features shielding with an EMI finger.
Green and Yellow LEDs.
-40°C to 85°C.
Phosphor bronze contacts with gold finish.
1 port.
