| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
166 pcs
|
166 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

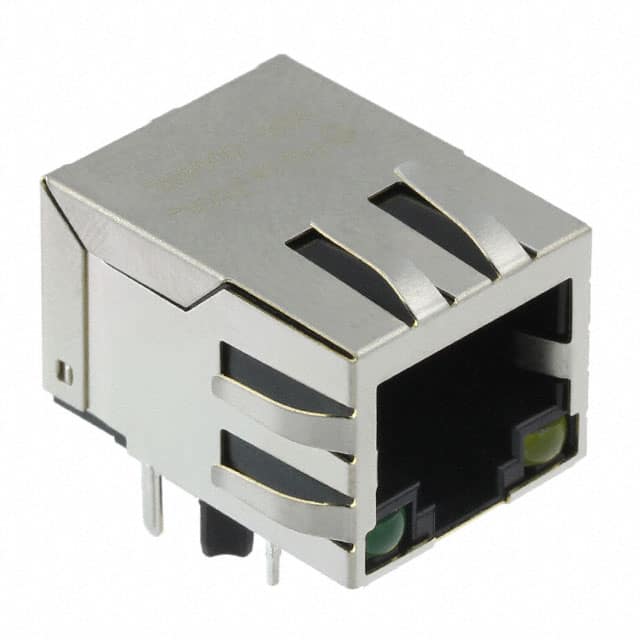

The JXD0-0006NL is a single-port RJ45 modular connector jack with integrated magnetics manufactured by Pulse Electronics. It is designed for 10/100 Base-TX Ethernet applications with AutoMDIX support. The connector features a 90° right angle orientation and through hole mounting, making it suitable for PCB layouts where space is constrained. The shielded design includes EMI finger contacts to reduce electromagnetic interference. The jack is terminated via solder, and the contacts are made of copper alloy with gold finish for reliable connectivity. The operating temperature range is -40°C to 85°C, allowing use in industrial environments. The connector includes green-yellow LED indicators for link status and activity. The height above board is 0.531 inches (13.49mm), and the tab direction is down. This component is a complete solution for integrating Ethernet connectivity into a variety of networking equipment, such as switches, routers, and industrial controllers.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.95 | $5.95 |
| 10+ | $5.05 | $5.05 |
| 25+ | $4.74 | $4.74 |
| 50+ | $4.51 | $4.51 |
| 100+ | $4.29 | $4.29 |
| 250+ | $4.02 | $4.02 |
| 500+ | $3.83 | $3.83 |
| 1,000+ | $3.65 | $3.65 |
| 2,500+ | $3.42 | $3.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 1 port.
The connector has 4 positions (cores per jack).
The connector has a 90° angle (right) orientation.
Through hole mounting.
Yes, it is shielded with EMI finger contacts.
Green and yellow LEDs.
-40°C to 85°C.
