| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
190 pcs
|
190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

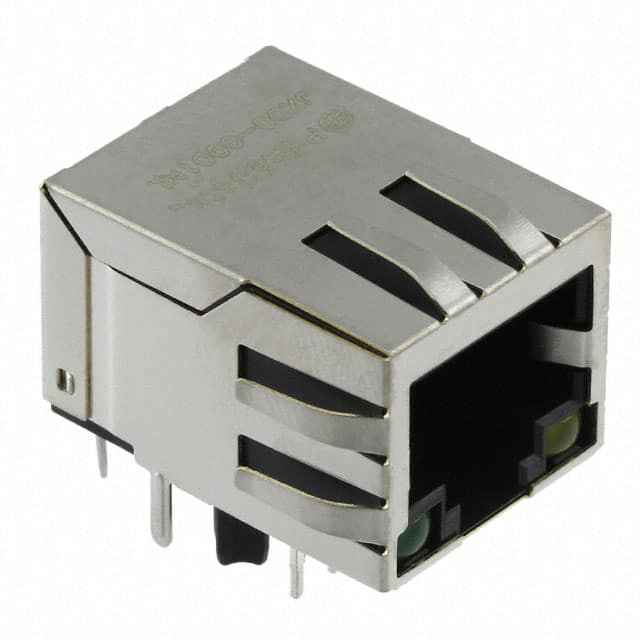

The JXD0-0001NL from Pulse Electronics is a single-port RJ45 jack with integrated magnetics, designed for 10/100/1000 Base-T Ethernet applications with AutoMDIX support. The connector features 8 contacts with gold-plated phosphor bronze terminals, ensuring reliable signal integrity. It is shielded with an EMI finger to reduce electromagnetic interference. The through hole mounting with right angle (90°) orientation allows for secure PCB attachment. A board guide aids in alignment during assembly. The jack includes a green and yellow LED indicator for link/activity status. Operating temperature range is -40°C to 85°C, and the height above board is 13.65 mm (0.537 in). The tab direction is down. This connector is suitable for Ethernet interfaces in networking equipment, industrial controls, and embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.92 | $7.92 |
| 10+ | $6.73 | $6.73 |
| 25+ | $6.31 | $6.31 |
| 50+ | $6.01 | $6.01 |
| 100+ | $5.72 | $5.72 |
| 250+ | $5.36 | $5.36 |
| 500+ | $5.11 | $5.11 |
| 1,000+ | $4.87 | $4.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 contacts.
Through hole.
Yes, shielded with EMI finger.
-40°C to 85°C.
10/100/1000 Base-T with AutoMDIX.
Green and Yellow.
13.65 mm (0.537 in).
