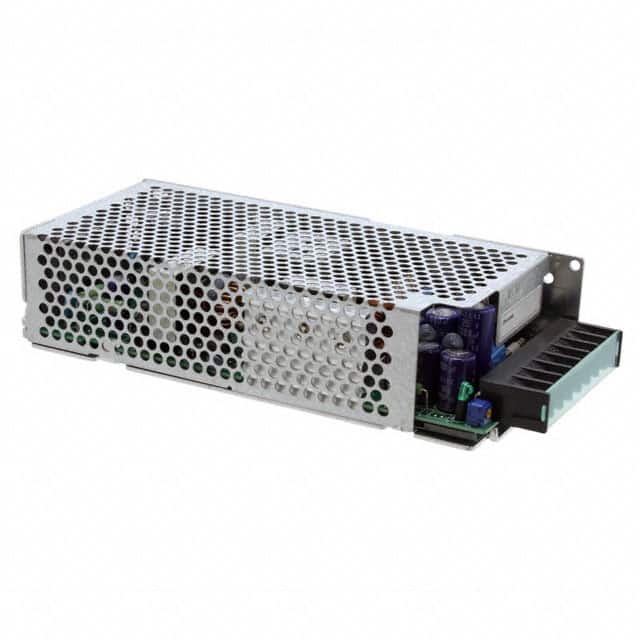

JWT100-5FF/A The TDK Corporation JWT100-5FF/A is a 100W AC/DC converter with multiple outputs. It features a chassis mount type and adjustable output capabilities.
Mfr Part #:

JWT100-5FF/A

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation JWT100-5FF/A is a 100W AC/DC converter with multiple outputs. It features a chassis mount type and adjustable output capabilities.
Stock on Request

JWT100-5FF/A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
SVHC Present
Type
Voltage
Width
View Similar Products (0)

JWT100-5FF/A Description

Short technical summary and product information.

The TDK Corporation JWT100-5FF/A is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers 100W of power with multiple output voltages including 5V and +/-15V, and an output current of 1A.



Key features include adjustable output, DC input capability, Power Factor Correction (PFC), and universal input. The converter operates within a temperature range of -10°C to 65°C with derating. Its dimensions are 202.9mm in length, 91.9mm in width, and 48.0mm in height.



This unit is designed for chassis mounting and carries CE approval. It is RoHS3 compliant and has an MSL rating of 1.

JWT100-5FF/A Quick Information

Product Type: AC DC Converter
Canonical Name: TDK Corporation JWT100-5FF/A AC/DC Converter
Subcategory: AC DC Converters

JWT100-5FF/A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

JWT100-5FF/A Features

  • 100W enclosed AC/DC converter.
  • Features adjustable output and PFC.
  • Chassis mount type for easy integration.
  • Operates from -10°C to 65°C.
  • CE approved and RoHS3 compliant.

JWT100-5FF/A Applications

  • Used in commercial IT equipment.
  • Ideal for test and measurement systems.
  • Powers data communication networking gear.
  • Accepts universal AC and DC inputs.
  • Adjustable output for custom voltage requirements.

JWT100-5FF/A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-10°C to 65°C with derating.

What is the efficiency of the JWT100-5FF/A?

72%.

How many outputs does this converter have?

3 outputs.

What are the output voltages?

5V, +15V, and -15V.

What is the power rating?

100W.

What is the mounting type?

Chassis Mount.

What approvals does this converter have?

CE.
