| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

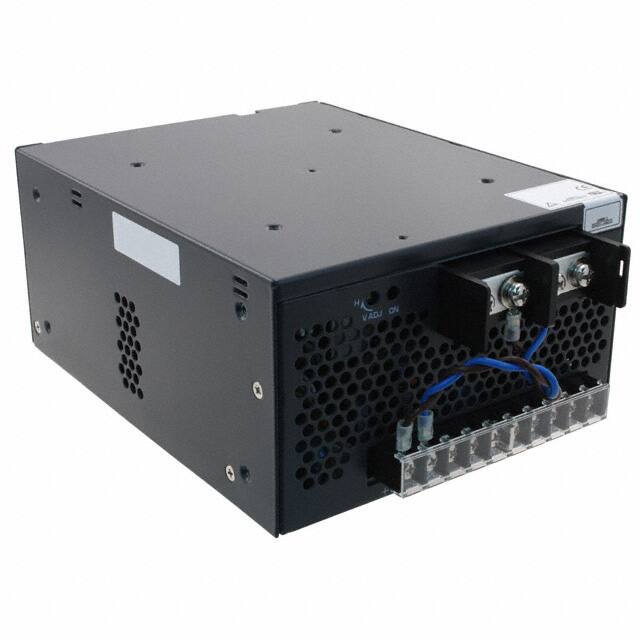

The TDK JWS600-5 is a single-output AC/DC converter rated for 600W continuous power. It provides a regulated 5V output capable of sourcing up to 120A, making it suitable for high-current 5V rail applications.
Electrical specifications include a wide input range of 85-265 VAC (47-63Hz) or 120-330 VDC. Typical efficiency is 75%, and the hold-up time is 20ms. The unit features overcurrent protection (>105% load) and overvoltage protection.
With a leakage current of 0.75mA maximum, the JWS600-5 is designed for reliable operation in industrial power systems. The single-output architecture simplifies design integration for equipment requiring a stable 5V bus.
The input voltage range is 85-265 VAC (47-63Hz) or 120-330 VDC.
Output voltage is 5V and output current is 120A.
The output power rating is 600W.
Typical efficiency is 75%.
Overcurrent protection (>105% load) and overvoltage protection are included.
Typical hold-up time is 20ms.
Maximum leakage current is 0.75mA.
